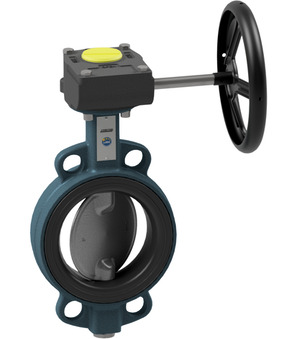

Butterfly valve with manual gear box BUW6-150-DSVS-G

Butterfly valve with manual gear box BUW6-150-DSVS-G

Butterfly valve with manual gear box Series BUW6-DSVS-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 150mm; Length 56mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 11.414 Kg
Short Itemnumber: BUW6150DSVSG
https://www.stasto.ro/web/image/product.template/140983/image_1920?unique=b9bbba7

butterfly valve with manual gear box series BUW6-DSVS-G; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 150mm; length 56mm

4.775,60 lei 4775.6 RON 4.775,60 lei

Not Available For Sale

  • DN
  • Length

This combination does not exist.

Availability:
Contact Us

Share

DN 150 mm
Length 56 mm
BUW6-150-DSVS-B x 1.0
Butterfly valve with bare shaft BUW6-150-DSVS-B
Butterfly valve with bare shaft Series BUW6-DSVS-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 150mm; Length 56mm
Add to Cart
GB02-07/14-01
GB02-07/14-01 x 1.0
GB02-07/14-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 14mm
Add to Cart
