Butterfly valve with hand lever Series BUW6-DSES-L Store

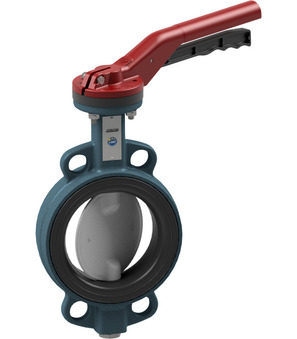

Butterfly valve with hand lever BUW6-150-DSES-L

Butterfly valve with hand lever BUW6-150-DSES-L

Butterfly valve with hand lever Series BUW6-DSES-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm; Pressure range 0...16bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 9.75 Kg
Short Itemnumber: BUW6150DSESL

Butterfly valve with hand lever Series BUW6-DSES-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm; Pressure range 0...16bar

1.843,10 lei 1843.1 RON 1.843,10 lei

DN
- 150 mm
Length
- 56 mm
Pressure range
- 0...16 bar

This combination does not exist.

Availability:

dimension
DN	150 mm
Length	56 mm
pressure
Pressure range	0...16 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language

CAD / 3D

1

CADSTEP_BUW6150DSESL.stp

BUW6-150-DSES-B x 1.0

BUW6-150-DSES-B

Butterfly valve with bare shaft end DN150, wafer, PN10/16/A150, 0-16bar body GGG40, disc and shaft 1.4408, sleeve EPDM

HLBU-125150-A

HLBU-125150-A x 1.0

HLBU-125150-A

Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 125;150mm
