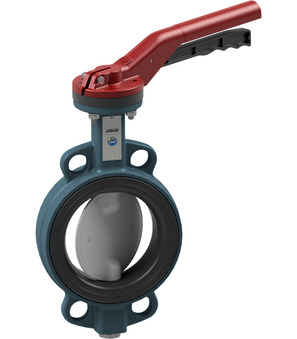

Butterfly valve with hand lever BUW6-080-DSES-L

Butterfly valve with hand lever BUW6-080-DSES-L

Butterfly valve with hand lever Series BUW6-DSES-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 80mm; Length 46mm; Pressure range 0...16bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.35 Kg
Short Itemnumber: BUW6080DSESL
https://www.stasto.ro/web/image/product.template/90249/image_1920?unique=140292a

Butterfly valve with hand lever Series BUW6-DSES-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 80mm; Length 46mm; Pressure range 0...16bar

1.028,20 lei 1028.2 RON 1.028,20 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 80 mm
Length 46 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 80 mm
Length 46 mm

BUW6-080-DSES-L

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BUW6-080-DSES-B x 1.0 Pcs
BUW6-080-DSES-B
Butterfly valve with free shaft end DN80, wafer, PN10/16/A150, 0-16bar body GGG40, disc and shaft 1.4408, sleeve EPDM
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
