Butterfly valve with hand lever Series BUW6-DSD-L-A Store

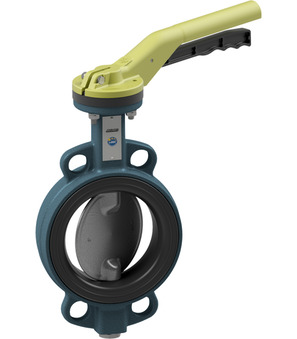

Butterfly valve with hand lever BUW6-080-DSD-L-A

Name: Butterfly valve with hand lever BUW6-080-DSD-L-A
Brand: STASTO
SKU: BUW6-080-DSD-L-A
Price: 1296.4 RON
Availability: InStock

Butterfly valve with hand lever Series BUW6-DSD-L-A; ATEX II 2 G/D Ex h X; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; Pressure range 0...16bar; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.6 Kg
Short Itemnumber: BUW6080DSDLA

butterfly valve with hand lever series BUW6-DSD-L-A; ATEX II 2 G/D Ex h X; wafer type; DVGW-gas-approved; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+60°C; pressure range 0...16bar; DN 80mm; length 46mm

1.296,40 lei 1296.4 RON 1.296,40 lei

DN
- 80 mm
Length
- 46 mm
Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	80 mm
Length	46 mm
design
Design	ATEX

BUW6-080-DSD-L x 1.0

Butterfly valve with hand lever BUW6-080-DSD-L

Butterfly valve with hand lever Series BUW6-DSD-L; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 80mm; Length 46mm; Pressure range 0-16bar
