Butterfly valve with hand lever Series BUW6-CSN-L-A Store

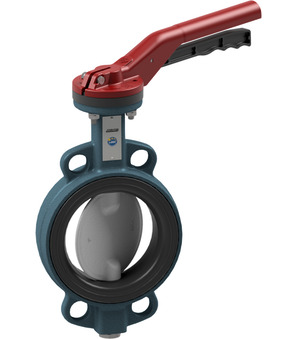

Butterfly valve with hand lever BUW6-080-CSN-L-A

Name: Butterfly valve with hand lever BUW6-080-CSN-L-A
Brand: STASTO
SKU: BUW6-080-CSN-L-A
Price: 1749.8 RON
Availability: InStock

Butterfly valve with hand lever Series BUW6-CSN-L-A; ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Steel Epoxy coated, Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; ATEX II 2 G/D c TX; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 5.95 Kg
Short Itemnumber: BUW6080CSNLA

butterfly valve with hand lever series BUW6-CSN-L-A; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1R20; body steel epoxy coated, disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -25...+100°C; pressure range 0...16bar; ATEX II 2 G/D c TX; DN 80mm; length 46mm

1.749,80 lei 1749.8 RON 1.749,80 lei

DN
- 80 mm
Length
- 46 mm
Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	80 mm
Length	46 mm
design
Design	ATEX

BUW6-080-CSN-B-A x 1.0

Butterfly valve with bare shaft BUW6-080-CSN-B-A

Butterfly valve with bare shaft Series BUW6-CSN-B-A; ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated, Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 80mm; Length 46mm
