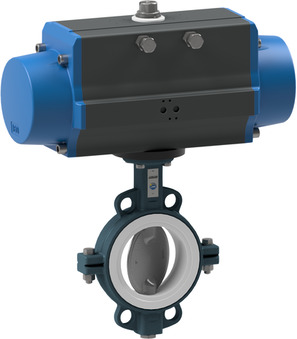

BUW4-200-DZTS-D22
butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc stainless steel AISI 630 PTFE-coated; shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAS1805
Country of origin: Italy
Weight: 26.58 Kg
Short Itemnumber: BUW4200DZTSD22
butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc stainless steel AISI 630 PTFE-coated; shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAS1805
