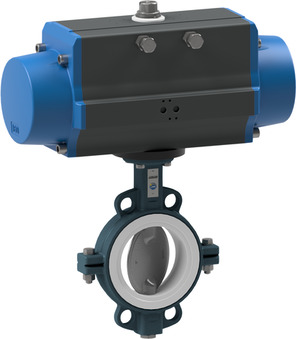

BUW4-150-DZTS-D22
Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4542 PTFE-coated; Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAD100
Country of origin: Italy
Weight: 16.14 Kg
Short Itemnumber: BUW4150DZTSD22
Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 630 PTFE-coated; Shaft AISI 316; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAD100
