BUW4-100-CZTS-L-3E

BUW4-100-CZTS-L-3E

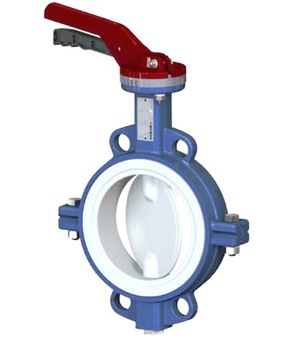

Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc Stainless steel AISI 630 PTFE-coated; Shaft 1.4542; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -29...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW4100CZTSL3E
https://www.stasto.ro/web/image/product.template/185420/image_1920?unique=24fee4a

butterfly valve with hand lever; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc stainless steel AISI 630 PTFE-coated; shaft AISI 630; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -29...+190°C; pressure range 0...10bar; DN 100mm; length 52mm; notch impact test -29°C; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

9.203,50 lei 9203.5 RON 9.203,50 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW4-100-CZTS-B-3E x 1.0
    Butterfly valve with bare shaft BUW4-100-CZTS-B-3E
    Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4542 PTFE-coated; Shaft 1.4542; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -29...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
    Add to Cart
    HLBU-040100-A
    HLBU-040100-A x 1.0
    HLBU-040100-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
