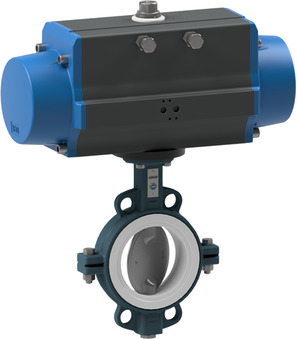

Butterfly valve with pneumatic actuator BUW4-065-DSTS-D22

Butterfly valve with pneumatic actuator BUW4-065-DSTS-D22

Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Actuator PAD075

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.03 Kg
Short Itemnumber: BUW4065DSTSD22
https://www.stasto.ro/web/image/product.template/123812/image_1920?unique=41404fd

butterfly valve with pneumatic actuator series BUW4-DSTS-D22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 65mm; length 46mm; actuator PAD075

4.839,40 lei 4839.4 RON 4.839,40 lei

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Material of case
  • Coil
  • Actuator
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10bar
DN 65 mm
Length 46 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...10bar
DN 65 mm
Length 46 mm

BUW4-065-DSTS-D22

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1
German / Deutsch
ZIP

Declarations of Conformity

1
English
ZIP

Declarations of Conformity

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1
Polish / Język polski
ZIP

Declarations of Conformity

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1
BUW4-065-DSTS-B x 1.0 Pcs
BUW4-065-DSTS-B
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 65mm; Length 46mm
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4605
RI4605
Diameter
75 mm
RI4619
RI4619
Diameter
75 mm
RI4647
RI4647
Diameter
75 mm
