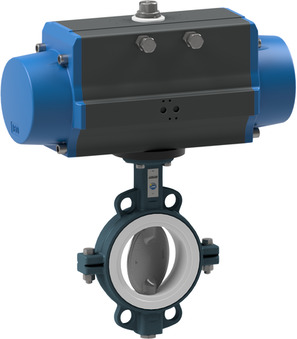

Butterfly valve with pneumatic actuator BUW4-080-DSTS-D22

Butterfly valve with pneumatic actuator BUW4-080-DSTS-D22

Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.45 Kg
Short Itemnumber: BUW4080DSTSD22
https://www.stasto.ro/web/image/product.template/122002/image_1920?unique=b9bbba7

butterfly valve with pneumatic actuator series BUW4-DSTS-D22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAD085

5.275,40 lei 5275.4 RON 5.275,40 lei

Not Available For Sale

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Material of case
  • Coil
  • Actuator
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 80 mm
Length 46 mm
characteristics
Actuator PAD075, PAD085

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Declarations of Conformity
1
Declaration of conformity_Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22_EN.pdf
Download

ZIP
Prohlášení o shodě
1
Prohlášení o shodě_uzavírací klapka s otočným pneumatickým pohonem série BUW4-DSTS-D22_CS.pdf
Download

ZIP
Konformitätserklärungen
1
Konformitätserklärung_Absperrklappe mit Druckluftdrehantrieb Serie BUW4-DSTS-D22_DE.pdf
Download

ZIP
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW4-DSTS-D22_HU.pdf
Download

ZIP
Deklaracje zgodności
1
Deklaracja zgodności_przepustnica z napędem pneumatycznym Seria BUW4-DSTS-D22_PL.pdf
Download

ZIP
Izjave o skladnosti
1
Izjava o skladnosti_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW4-DSTS-D22_SL.pdf
Download

ZIP
Declarations of Conformity
1
Deklaracija o usklađenosti_leptir ventil sa pneumatskim aktuatorom serije BUW4-DSTS-D22_SRLATIN.pdf
Download
BUW4-080-DSTS-B x 1.0
BUW4-080-DSTS-B
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm
Add to Cart
Pneumatic actuator PAD085
PAD085 x 1.0
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
Add to Cart
