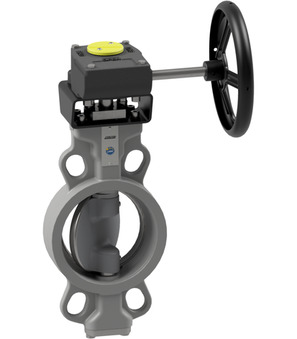

BUW3A-600-CSIQ-G

BUW3A-600-CSIQ-G

Butterfly valve with manual gear box Series BUW3A-CSIQ-G; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 600mm; Length 154mm; Nominal flange pressure PN16

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW3A600CSISG
https://www.stasto.ro/web/image/product.template/181334/image_1920?unique=f96ddcc

butterfly valve with manual gear box series BUW3A-CSIQ-G; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; medium temperature -10...+425°C; pressure range 0...25bar; DN 600mm; length 154mm; nominal flange pressure PN16

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • DN
  • Length
  • Flange
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 600 mm
Length 154 mm
Flange PN16
pressure
Pressure range 0...16 bar
BUW3A-600-CSIQ-B x 1.0
Butterfly valve with bare shaft BUW3A-600-CSIQ-B
Butterfly valve with bare shaft Series BU3A-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 600mm; Length 154mm; Nominal flange pressure PN16; Mounting flange F25; Square 55mm
Add to Cart
GB02-25/55-01
GB02-25/55-01 x 1.0
GB02-25/55-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 7000Nm; Flange ISO5211 F25; Square 55mm
