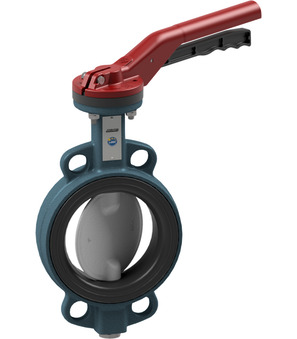

Butterfly valve with hand lever BUW2-250-DSV-L

Butterfly valve with hand lever BUW2-250-DSV-L

butterfly valve with hand lever series BUW2-DSV-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW2250DSVL
https://www.stasto.ro/web/image/product.template/236785/image_1920?unique=aac2621

butterfly valve with hand lever series BUW2-DSV-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm

7.619,40 lei 7619.4 RON 7.619,40 lei

Not Available For Sale

  • DN
  • Length

This combination does not exist.

Availability:
Contact Us

Share

DN 200 mm
Length 60 mm
BUW2-250-DSV-B x 1.0
Butterfly valve with bare shaft BUW2-250-DSV-B
butterfly valve with bare shaft series BUW2-DSV-B; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm
Add to Cart
HLBU-250300-A
HLBU-250300-A x 1.0
HLBU-250300-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 250;300mm
