BULZ-700-CSNK-G-3E01

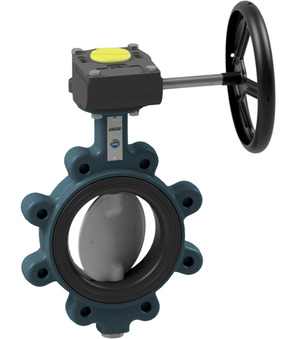

Butterfly valve with manual gear box Series BULZ-CSNK-G-3E01; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated RAL9005 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4305; Liner NBR; Medium temperature -25...+100°C; DN 700mm; Length 165mm; Pressure range 0...10bar; Nominal flange pressure PN16; Stainless steel nameplate; Stainless steel screws; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
Country of origin: Italy
Short Itemnumber: BULZ700CSNKG3E01
butterfly valve with manual gear box; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10; medium temperature -10...+130°C; pressure range 0...10bar; DN 700mm; length 165mm
