  6. BULY-150-DSN-G-02
BULY-150-DSN-G-02

BULY-150-DSN-G-02

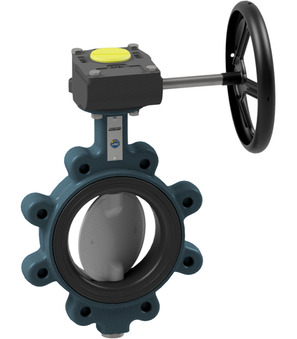

Butterfly valve with manual gear box; Series BULY-DSN-G-02; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure ANSI150; Flange thread UNC; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 150mm; Length 56mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.814 Kg
Short Itemnumber: BULY150DSNG02
https://www.stasto.ro/web/image/product.template/164432/image_1920?unique=24fee4a

butterfly valve with manual gear box; series BULY-DSN-G-02; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure ANSI150; flange thread UNC; medium temperature -10...+100°C; pressure range 0...16bar; DN 150mm; length 56mm

2.924,30 lei 2924.3 RON 2.924,30 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULY-150-DSN-B-01 x 1.0
    BULY-150-DSN-B-01
    Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 150mm; Length56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC
    Add to Cart
    GB02-07/14-01
    GB02-07/14-01 x 1.0
    GB02-07/14-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 14mm
