BULY-040-DSN-G-01

BULY-040-DSN-G-01

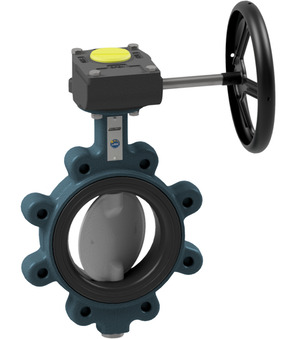

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 40mm; Length 33mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC

Intrastat No.: 84818085
Country of origin: Netherlands
Weight: 5.224 Kg
Short Itemnumber: BULY040DSNG01
https://www.stasto.ro/web/image/product.template/231482/image_1920?unique=37ad42f

butterfly valve with manual gear box; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 40mm; length 33mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC

1.745,20 lei 1745.2 RON 1.745,20 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Pressure range
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 40 mm
Length 33 mm
Brand STASTO
Pressure range 0...16 bar
DN 40 mm
Length 33 mm
Brand STASTO
BULY-040-DSN-B-01 x 1.0 Pcs
BULY-040-DSN-B-01
butterfly valve with bare shaft; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 40mm; length 33mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC
GB02-07/11-01
GB02-07/11-01 x 1.0 Pcs
GB02-07/11-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 11mm
