Butterfly valve with manual gear box Series BUW6-DSD-G Store

Butterfly valve with manual gear box BULC-450-DSD-G

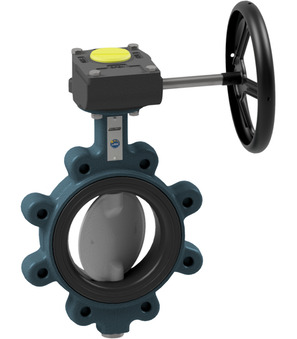

Name: Butterfly valve with manual gear box BULC-450-DSD-G
Brand: STASTO
SKU: BULC-450-DSD-G
Price: 27638.4 RON
Availability: InStock

Butterfly valve with manual gear box Series BUW6-DSD-G; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 450mm; Length 114mm; Pressure range 0…10bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 184.044 Kg
Short Itemnumber: BULC450DSDG

butterfly valve with manual gear box series BUW6-DSD-G; wafer type; DVGW-gas-approved; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+60°C; DN 450mm; length 114mm; pressure range 0…10bar

27.638,40 lei 27638.4 RON 27.638,40 lei

DN
- 450 mm
Length
- 114 mm
Pressure range
- 0...10 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	450 mm
Length	114 mm
pressure
Pressure range	0...10 bar

BULC-450-DSD-B x 1.0

Butterfly valve with bare shaft BULC-450-DSD-B

Butterfly valve with bare shaft Series BULG-B-DVGW, BULC-B-DVGW; Lug type; DVGW-gas-approved;Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+60°C; DN 450mm; Length 114mm; Pressure range 0…10bar; Flange PN10

Add to Cart
