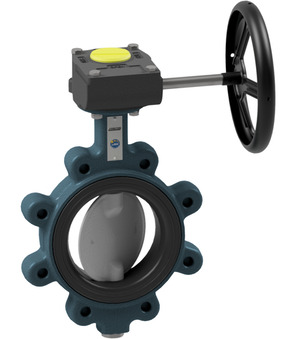

BULC-300-DSN-G-01-3C

BULC-300-DSN-G-01-3C

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 300mm; Length 78mm; Coating C5M; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 48.708 Kg
Short Itemnumber: BULC300DSNG013C
https://www.stasto.ro/web/image/product.template/157789/image_1920?unique=f96ddcc

butterfly valve with manual gear box; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10; medium temperature -10...+100°C; pressure range 0...10bar; DN 300mm; length 78mm; coating C5M; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULC-300-DSN-B-01-3C x 1.0
    BULC-300-DSN-B-01-3C
    Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 300mm; Length 78mm; Pressure range 0…10bar; Nominal flange pressure PN10; Coating C5M; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
    Add to Cart
    GB02-10/22-02
    GB02-10/22-02 x 1.0
    GB02-10/22-02
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm
