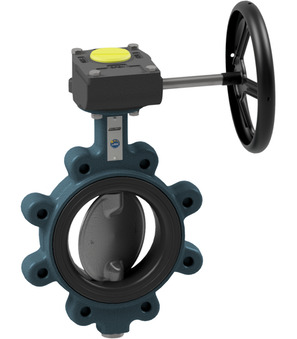

butterfly valve with manual gear box BULA-300-DPE-G-A

Price.

1.099,74 €
Butterfly valve with manual gear box Series BULC-G Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Butterfly valves
  5. Butterfly valve with manual gear box Series BULC-G
  6. BULA-300-DPE-G-A
butterfly valve with manual gear box BULA-300-DPE-G-A
Butterfly valve with manual gear box BULC-450-DPE-G
Butterfly valve with manual gear box BULC-450-DPE-G
3.342,21 €
3.342,21 €
Butterfly valve with manual gear box BULC-350-DSE-G
Butterfly valve with manual gear box BULC-350-DSE-G
2.298,73 €
2.298,73 €

butterfly valve with manual gear box BULA-300-DPE-G-A

butterfly valve with manual gear box series BULA-G; lug type; ATEX - II 2GD Ex h X EPT; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 300mm; length 78mm; pressure range 0...16bar; nominal flange pressure PN16

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.628 Kg
Short Itemnumber:BULA300DPEGA
https://www.stasto.ro/web/image/product.template/231589/image_1920?unique=4862d82

butterfly valve with manual gear box series BULA-G; lug type; ATEX - II 2GD Ex h X EPT; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 300mm; length 78mm; pressure range 0...16bar; nominal flange pressure PN16

1.099,74 € 1099.740428293316 EUR 1.099,74 €

Not Available For Sale

  • DN
  • Length
  • Design

This combination does not exist.

Availability:
Contact Us
dimension
DN 300 mm
Length 78 mm
design
Design ATEX

Data sheets, Instructions, 3D-files and Certificates...
