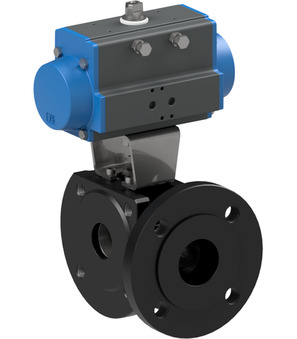

Flanged ball valve with pneumatic actuator BAMA-080-CITV-S0

Flanged ball valve with pneumatic actuator BAMA-080-CITV-S0

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; Nominal diameter 80mm; DN ball 64mm; Length 122mm; Actuator PAS1255; Ball L

Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA
Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 44.32 Kg
Short Itemnumber: BAMA080CITVS0
https://www.stasto.ro/web/image/product.template/87134/image_1920?unique=d975ddd

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; Nominal diameter 80mm; DN ball 64mm; Length 122mm; Actuator PAS1255; Ball L

11.634,60 lei 11634.6 RON 11.634,60 lei

Not Available For Sale

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • DN ball
  • Connector size
  • Ball
  • Design
  • Voltage
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 80 mm
DN ball 64 mm
Length 122 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 80 mm
DN ball 64 mm
Length 122 mm
Ball L

BAMA-080-CITV-S0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve 776000-80
776000-80 x 1.0 Pcs
Flanged ball valve 776000-80
Flanged ball valve Series 776000, 776001; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 80mm; DN ball 64mm; Length 122mm; Ball L
Pneumatic actuator PAS1255
PAS1255 x 1.0 Pcs
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
RI3010 x 1.0 Pcs
RI3010
Mounting bracket; F10-F07; Bolt 22-14
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4609
RI4609
Diameter
125 mm
RI4623
RI4623
Diameter
125 mm
RI4651
RI4651
Diameter
125 mm
