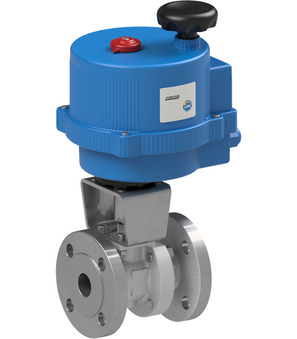

Flanged ball valve with electrical actuator BA764-50-0H

Flanged ball valve with electrical actuator BA764-50-0H

Flanged ball valve with electrical actuator Series BA764; Length According to EN558−1R27; Full bore; Body Steel A352-LCB; Ball 1.4301; Ball seal PTFE-Graphite reinforced; Stem seal Graphoil/PTFE/FKM-Peroxide; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 50mm; Flange PN40; Length 150mm; Operating time 9s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA764500H
https://www.stasto.ro/web/image/product.template/175939/image_1920?unique=baeb489

flanged ball valve with electrical actuator series BA764; length according to EN558−1R27; full bore; body steel A352-LCB; ball AISI 304; ball seal PTFE-graphite reinforced; stem seal Graphoil/PTFE/FKM-Peroxide; pressure range steam 0...15bar; medium temperature -20...+198°C; nominal diameter 50mm; flange PN40; length 150mm; operating time 9s; voltage 100-240VAC

6.829,90 lei 6829.9 RON 6.829,90 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Flange
  • Voltage
  • Pressure range
  • Actuator
  • Operating time
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 50 mm
Flange PN40
Length 150 mm
All specifications (7)
Pressure range 0...40 bar
DN 50 mm
Flange PN40
Length 150 mm
Operating time 9 s
Voltage 100-240VAC
Brand STASTO
BA764-50-LLD-A
BA764-50-LLD-A x 1.0 Pcs
BA764-50-LLD-A
Flanged ball valve Series BA764-A; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Steel A352-LCB; Ball 1.4301; Ball seal PTFE-Graphite reinforced; Stem seal Graphoil/PTFE/FKM-Peroxide; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; With locking device; Nominal diameter 50mm; Flange PN40; Length 150mm
Electrical actuator VB060-H
VB060-H x 1.0 Pcs
Electrical actuator VB060-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67
RI4039 x 1.0 Pcs
RI4039
Mounting bracket; F07/F07; Bolt 14-14
Accessory Products
Flanged ball valve 760000-50
760000-50
Flanged ball valve 760000-50
DN
50 mm
Flange
PN40
Design
ATEX
Pressure range
0...40 bar
