Electrical actuator VB060-H

Price.

3.223,20 lei
Electrical actuator Series VB Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Spare parts
  5. Electrical actuator Series VB
  6. VB060-H
Electrical actuator VB060-H
Electrical actuator VB060-L
Electrical actuator VB060-L
2.891,70 lei
2.891,70 lei
Electrical actuator VB110-L
Electrical actuator VB110-L
3.347,60 lei
3.347,60 lei

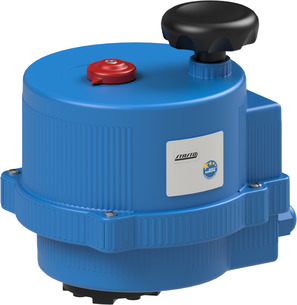

Electrical actuator VB060-H

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67

Intrastat No.: 85013100
Country of origin: Italy
Weight: 3.23 Kg
Short Itemnumber:VB060H
https://www.stasto.ro/web/image/product.template/65534/image_1920?unique=0ec923a

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67

3.223,20 lei 3223.2 RON 3.223,20 lei

Not Available For Sale

  • Flange ISO5211
  • Voltage
  • Actuator
  • Torque
  • Operating time
  • Protection class

This combination does not exist.

Availability:
Contact Us
Designs
Flange ISO5211 F05/F07-star 14mm
Electrical key figures
Voltage 100-240VAC
characteristics
Actuator VB060H
Torque 60 Nm
Operating time 9 s
Others
Protection class IP67

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Electrical actuator Series VB_EN.pdf
Download
Assembly and Operating Instructions
1
Operating and maintenance instruction_Electrical actuator Series VB_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Electrical actuator Series VB_EN.pdf
Download
CAD / 3D
1
CADSTEP_VB060H.stp
Download

ZIP
Datové listy
1
Datový list_Elektropohon série VB_CS.pdf
Download
Montážní a provozní návody
1
Provozní příručka a plán údržby_Elektropohon série VB_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_Elektropohon série VB_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Elektrisk aktuator Serie VB_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Elektroantrieb Serie VB_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Betriebs- und Wartungsanleitung_Elektroantrieb Serie VB_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Elektroantrieb Serie VB_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Ηλεκτρικός ενεργοποιητής Σειρά VB_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Actuador eléctrico Serie VB_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Sähkötoimilaite Sarja VB_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Actionneur électrique Série VB_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Električni pogon Serija VB_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos forgatóhenger sorozat VB_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Üzemeltetési és karbantartási utasítás_elektromos forgatóhenger sorozat VB_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_elektromos forgatóhenger sorozat VB_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Attuatore elettrico Serie VB_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Elektrisk aktuator Serie VB_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Elektrische aandrijving Serie VB_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_napęd elektryczny Seria VB_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja obsługi_napęd elektryczny Seria VB_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_napęd elektryczny Seria VB_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Acționare electrică serie VB_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Električni pogon serija VB_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za uporabo in vzdrževanje_Električni pogon serija VB_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Električni pogon serija VB_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_električni aktuator serije VB_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Instrukcija rada i održavanja_električni aktuator serije VB_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_električni aktuator serije VB_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Elektriskt ställdon Serie VB_SV.pdf
Download
No spare parts are available for this product.
