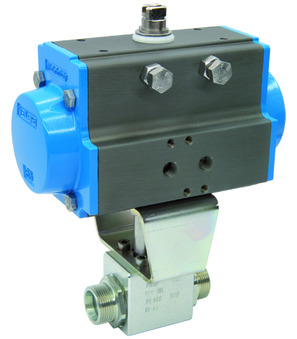

Ball valve with pneumatic actuator BA118-28L-D0

Ball valve with pneumatic actuator BA118-28L-D0

Ball valve with pneumatic actuator Series BA118-D0; Male thread According to DIN 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Connection 28L/M36x2; Nominal diameter 24mm; Pressure range 0...350bar; Length 108mm; Actuator PAD085

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.28 Kg
Short Itemnumber: BA11828LD0
https://www.stasto.ro/web/image/product.template/134369/image_1920?unique=0e8018d

ball valve with pneumatic actuator series BA118-D0; male thread according to DIN 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals PEEK/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; connection 28L/M36x2; nominal diameter 24mm; pressure range 0...350bar; length 108mm; actuator PAD085

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Connection
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Connection 28L/M36x2
DN 24 mm
Length 108 mm
pressure
Pressure range 0...350 bar
characteristics
Actuator PAD085
BKH-28L-25 11651-B0FA x 1.0
BKH-28L-25 11651-B0FA
Ball valve, PN 350, tube 28L/M36x2 housing galvanised steel, seal PEEK/FKM drilled for actuator mounting F04
Add to Cart
Pneumatic actuator PAD085
PAD085 x 1.0
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/337/99 x 1.0
A4/337/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 46mm; Male square 14mm; Height of the male square 17mm; Female square 14mm; Height of the female square 13mm
