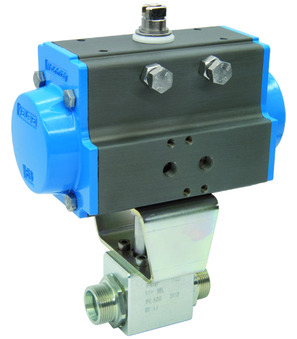

Ball valve with pneumatic actuator BA118-22L-D0

Ball valve with pneumatic actuator BA118-22L-D0

Ball valve with pneumatic actuator Series BA118-D0; Male thread According to DIN 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Connection 22L/M30x2; Nominal diameter 20mm; Pressure range 0...400bar; Length 102mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.69 Kg
Short Itemnumber: BA11822LD0
https://www.stasto.ro/web/image/product.template/134367/image_1920?unique=0e8018d

ball valve with pneumatic actuator series BA118-D0; male thread according to DIN 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals PEEK/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; connection 22L/M30x2; nominal diameter 20mm; pressure range 0...400bar; length 102mm; actuator PAD075

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Connection
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Connection 22L/M30x2
DN 20 mm
Length 102 mm
pressure
Pressure range 0...400 bar
characteristics
Actuator PAD075
BA118-22L-B x 1.0
BA118-22L-B
High pressure ball valve; Male thread According to DIN 2353; Body Zinc plated steel; Ball Steel; Seals PEEK/FKM; Medium temperature -10...+160°C; Connection 22L/M30x2; Nominal diameter 20mm; Pressure range 0-400bar; Length 102mm
Add to Cart
Pneumatic actuator PAD075
PAD075 x 1.0
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/337/99 x 1.0
A4/337/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 46mm; Male square 14mm; Height of the male square 17mm; Female square 14mm; Height of the female square 13mm
