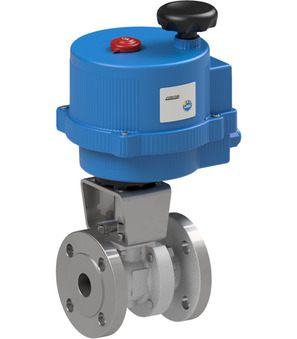

Flanged ball valve with electrical actuator BA051-65-0H-3C

Flanged ball valve with electrical actuator BA051-65-0H-3C

Flanged ball valve with electrical actuator Series 8E053; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 65mm; Pressure range 0...16bar; Flange PN16; Length 170mm; Operating time 27s; Voltage 100-240VAC; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.48 Kg
Short Itemnumber: BA051650H3C
https://www.stasto.ro/web/image/product.template/176511/image_1920?unique=e5e4a60

flanged ball valve with electrical actuator series 8E053; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; medium temperature -20...+160°C; DN 65mm; pressure range 0...16bar; flange PN16; length 170mm; operating time 27s; voltage 100-240VAC; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

10.909,90 lei 10909.9 RON 10.909,90 lei

Not Available For Sale

  • DN
  • Length
  • Flange
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 65 mm
Length 170 mm
Flange PN16
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...16 bar
characteristics
Actuator VB110H
Operating time 27 s
BA051-65-LLD-A3C
BA051-65-LLD-A3C x 1.0
BA051-65-LLD-A3C
Flanged ball valve; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; Nominal diameter 65mm; Pressure range 0...16bar; Flange PN16; Length 170mm
Add to Cart
Electrical actuator VB110-H
VB110-H x 1.0
Electrical actuator VB110-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
Add to Cart
Accessory Products
Flanged ball valve 760000-65
760000-65
Flanged ball valve 760000-65
BA779-65-L-A3C
BA779-65-L-A3C
BA779-65-L-A3C
