A1V2HS2-5-80-B-01

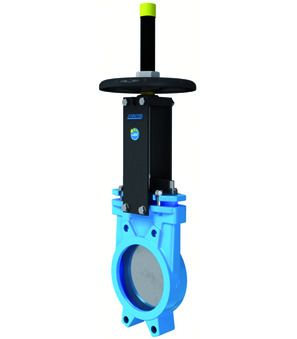

knife gate valve with handwheel series A1V; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 316L; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 80mm; length 52mm; pressure range 0...10bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 9.35 Kg
Short Itemnumber: A1V2HS2580B01
Country of origin: Spain
Weight: 9.35 Kg
Short Itemnumber: A1V2HS2580B01
knife gate valve with handwheel series A1V; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 316L; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 80mm; length 52mm; pressure range 0...10bar
| dimension | |
|---|---|
| DN | 65 mm |
| Length | 40 mm |
| pressure | |
| Pressure range | 0...10 bar |
No spare parts are available for this product.
