3/2-way solenoid valve 31A3AV15

Price.

280,00 lei
3/2-way solenoid valve Series 31A Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 3/2-way solenoid valves - directly operated
  5. 3/2-way solenoid valve Series 31A
  6. 31A3AV15

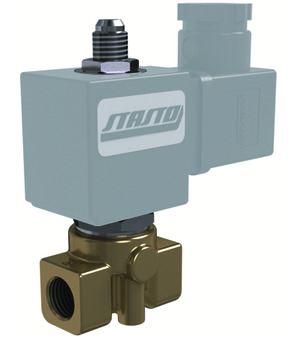

3/2-way solenoid valve 31A3AV15
3/2-way solenoid valve 31A3FV15-U
3/2-way solenoid valve 31A3FV15-U
388,10 lei
388,10 lei
3/2-way solenoid valve 31A3FV15-U-BDA08012CS-C003-31-CV20-6
3/2-way solenoid valve 31A3FV15-U-BDA08012CS-C003-31-CV20-6
570,70 lei
570,70 lei

3/2-way solenoid valve 31A3AV15

3/2-way solenoid valve Series 31A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 1,5/2,5mm; Pressure AC/DC 0-15bar; Length 40mm

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.17 Kg
Short Itemnumber:31A3AV15
https://www.stasto.ro/web/image/product.template/3948/image_1920?unique=133328d

3/2-way solenoid valve Series 31A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 1,5/2,5mm; Pressure AC/DC 0-15bar; Length 40mm

280,00 lei 280.0 RON 280,00 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Cable length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/8"
DN 1,5/2,5 mm
Length 40 mm
Designs
Connector size 32 mm
pressure
Pressure AC/DC 0...15 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
2
Data sheet_3/2-way solenoid valve Series 31A_EN.pdf
Download
Data sheet_3/2-way solenoid valves - directly operated_EN.pdf
Download
Assembly and Operating Instructions
1
Assembly and operating instructions_3/2-way solenoid valves - directly operated_EN.pdf
Download
CAD / 3D
1
CADSTEP_31A3AV15.stp
Download

ZIP
Datové listy
2
Datový list_3/2 cestný magnetventil série 31A_CS.pdf
Download
Datový list_3/2-cestné ventily - přímo řízené_CS.pdf
Download
Montážní a provozní návody
1
Návod k montáži a obsluze_3/2-cestné ventily - přímo řízené_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_3/2-vejs magnetventil Serie 31A_DA_DK.pdf
Download

ZIP
Datenblätter
2
Datenblatt_3/2-Wege Magnetventile - direktgesteuert_DE.pdf
Download
Datenblatt_3/2-Wege-Magnetventil Serie 31A_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Montage- und Betriebsanleitung_3/2-Wege Magnetventile - direktgesteuert_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Ηλεκτρομαγνητική βαλβίδα 3/2 οδών Σειρά 31A_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula solenoide de 3/2 vías Serie 31A_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_3/2-tie solenoidiventtiili Sarja 31A_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Électrovanne 3/2 voies Série 31A_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_3/2-putni elektromagnetski ventil Serija 31A_HR.pdf
Download

ZIP
Adatlapok
2
Adatlap_3/2- es mágnesszelep sorozat 31A_HU.pdf
Download
Adatlap_3/2-es elektromos vezérlésű útszelepek - közvetlen vezérléssel_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Összeszerelési és kezelési útmutató_3/2-es elektromos vezérlésű útszelepek - közvetlen vezérléssel_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola solenoide 3/2 vie Serie 31A_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_3/2-veis magnetventil Serie 31A_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_3/2-weg magneetventiel Serie 31A_NL.pdf
Download

ZIP
Karty katalogowe
2
Arkusz danych_3/2-drogowe zawory elektromagnetyczne - sterowanie bezpośrednie_PL.pdf
Download
Arkusz danych_3/2-drogowy zawór elektromagnetyczny Seria 31A_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu i obsługi_3/2-drogowe zawory elektromagnetyczne - sterowanie bezpośrednie_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă solenoidală cu 3/2 căi serie 31A_RO.pdf
Download

ZIP
Podatkovni listi
2
Podatkovni list_3/2-potni magnetni ventil serija 31A_SL.pdf
Download
Podatkovni list_3/2-potni magnetni ventili - direktno krmiljeni_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za montažo in uporabo_3/2-potni magnetni ventili - direktno krmiljeni_SL.pdf
Download

ZIP
Data Sheets
2
Tehnički list_3/2 elektromagnetni ventil serije 31A_SRLATIN.pdf
Download
Tehnički list_3/2 elektromagnetni ventili - direktno upravljani_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Uputstvo za montažu i upotrebu_3/2 elektromagnetni ventili - direktno upravljani_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_3/2-vägs magnetventil Serie 31A_SV.pdf
Download
No spare parts are available for this product.
Accessories
