21A2KV20-BDV08024CY-C003-32-6

Price.

427,90 lei
2/2-way solenoid valve Series 21A.K Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - directly operated
  5. 2/2-way solenoid valve Series 21A.K
  6. 21A2KV20-BDV08024CY-C003-32-6
21A2KV20-BDV08024CY-C003-32-6
2/2-way solenoid valve 21A2KV20-BDA08024CS
2/2-way solenoid valve 21A2KV20-BDA08024CS
383,00 lei
383,00 lei
21A2KV20-BDA08024CS-C003-32-6
21A2KV20-BDA08024CS-C003-32-6
394,70 lei
394,70 lei

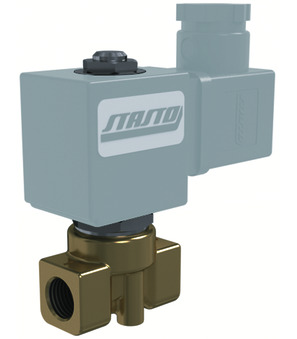

21A2KV20-BDV08024CY-C003-32-6

21A2KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDV08024CY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 24VDC
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.35 Kg
Short Itemnumber:21A2KV20BDV08024CYC003326
https://www.stasto.ro/web/image/product.template/218752/image_1920?unique=5595f15

21A2KV20
2/2-way solenoid valve series 21A; directly operated; NC; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/4"; DN 2mm; pressure AC 0-22bar; pressure DC 0-16bar; length 40mm
BDV08024CY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

427,90 lei 427.9 RON 427,90 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/4"
DN 2,0 mm
Length 40 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC 0...22 bar
Pressure DC 0...16 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C
Approval UL/CSA/VDE
