2/2-way solenoid valve 21X3KV190

Price.

3.780,60 lei
2/2-way solenoid valve Series 21X Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series 21X
  6. 21X3KV190

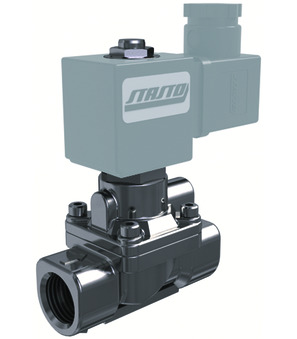

2/2-way solenoid valve 21X3KV190
21HT3K0V110-GDV-GDH14012CS-C003-31-CV20-6
21HT3K0V110-GDV-GDH14012CS-C003-31-CV20-6
933,80 lei
933,80 lei
21X3KV190-BDA08012CS-C003-32-6
21X3KV190-BDA08012CS-C003-32-6
3.911,70 lei
3.911,70 lei

2/2-way solenoid valve 21X3KV190

2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 3/4"; DN 19mm; Pressure AC/DC 0,1-16bar; Length 104mm

Intrastat No.: 84818099
Country of origin: Italy
Weight: 1.05 Kg
Short Itemnumber:21X3KV190
https://www.stasto.ro/web/image/product.template/1231/image_1920?unique=65d5792

2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel AISI 316; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 3/4"; DN 19mm; Pressure AC/DC 0,1-16bar; Length 104mm

3.780,60 lei 3780.6 RON 3.780,60 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure DC
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 19 mm
Length 104 mm
Designs
Connector size 32 mm
pressure
Pressure DC 0,1...16 bar
Pressure AC/DC 0,1...16 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C
