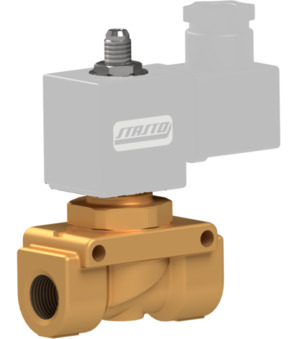

2/2-way solenoid valve 21PW4F0T120
2/2-way solenoid valve Series 21PW; Pilot-operated; Relief valve for compressors; Body Brass; Stainless steel tube with soldered hexagon made of brass; Seal PTFE/FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC 0,5-18bar; Pressure DC 0,5-18bar; Function NO; Length 67mm; Standard coil BDA
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.4 Kg
Short Itemnumber: 21PW4F0T120
Country of origin: Italy
Weight: 0.4 Kg
Short Itemnumber: 21PW4F0T120
2/2-way solenoid valve Series 21PW; Pilot-operated; Relief valve for compressors; Body Brass; Stainless steel tube with soldered hexagon made of brass; Seal PTFE/FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC 0,5-18bar; Pressure DC 0,5-18bar; Function NO; Length 67mm; Standard coil BDA
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 12 mm |
| Length | 67 mm |
| function | |
| Function | NO |
| Designs | |
| Connector size | 32 mm |
| pressure | |
| Pressure AC | 0,5...18 bar |
| Pressure DC | 0,5...18 bar |
| characteristics | |
| Coil | BDA |
