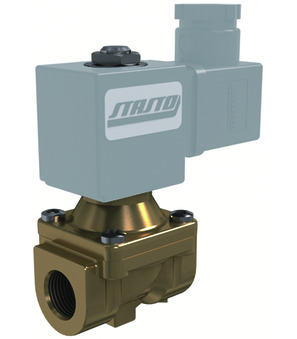

Supapă electromagnetică cu 2/2 căi SL200-12-BDV08230AY-C003-31-CV20-6

Supapă electromagnetică cu 2/2 căi SL200-12-BDV08230AY-C003-31-CV20-6

SL200-12
Supapă electromagnetică cu 2/2 căi serie SL200, 21H; operat de pilot; NC; corp alamă; sigiliu NBR; temperatura mediului -10...+90°C; Bobină standard BDA; latime conector 32mm; G 1/2"; DN 12mm; pres. AC 0,1...20bar; pres. DC 0,1...10bar; lungime 50mm
BDV08230AY
Bobină solenoid tip BDV; pentru zona umeda; Autorizare CSA/UL/VDE; latime conector 32mm; Tensiune 230V/50Hz, 240V/60Hz
C003-31-CV20-6
conector; latime conector 32mm; cu cablu PVC turnat (2 m); Tensiune 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italia
Weight: 0.72 kg
Short Itemnumber: SL20012BDV08230AYC00331CV206
https://www.stasto.ro/web/image/product.template/228665/image_1920?unique=eb38ccc

SL200-12
Supapă electromagnetică cu 2/2 căi serie SL200, 21H; operat de pilot; NC; corp alamă; sigiliu NBR; temperatura mediului -10...+90°C; Bobină standard BDA; latime conector 32mm; G 1/2"; DN 12mm; pres. AC 0,1...20bar; pres. DC 0,1...10bar; lungime 50mm
BDV08230AY
Bobină solenoid tip BDV; pentru zona umeda; Autorizare CSA/UL/VDE; latime conector 32mm; Tensiune 230V/50Hz, 240V/60Hz
C003-31-CV20-6
conector; latime conector 32mm; cu cablu PVC turnat (2 m); Tensiune 0...250VAC/DC

521,70 lei 521.7 RON 521,70 lei

Not Available For Sale

  • filet mama
  • DN
  • lungime
  • latime conector
  • conducere
  • Tensiune
  • Tipul de tensiune
  • pres. AC
  • pres. DC
  • sigiliu
  • bobina
  • temperatura mediului
  • Autorizare

Această combinație nu există.

Availability:
Contactați-ne

Distribuie

<<Abmessung>>
filet mama G 1/2"
DN 12 mm
lungime 50 mm
Types of construction
latime conector 32 mm
<<Ausführung>>
conducere cu cablu PVC turnat (2 m)
Electrical figures
Tensiune 230V/50Hz-240V/60Hz
Tipul de tensiune AC
<<Druck>>
pres. AC 0,1...20 bar
pres. DC 0,1...10 bar
<<Materialien>>
sigiliu NBR
<<Eigenschaften>>
bobina BDV
temperatura mediului -10...+90 °C
Autorizare UL/CSA/VDE
