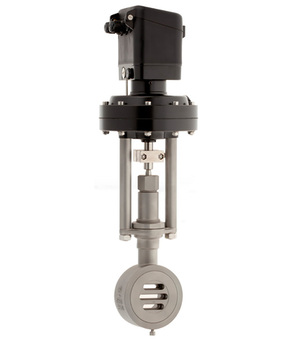

Supapă de control Tip SG10 80-48-125
Supapă de control Tip SG10; DN80; PN10/40; NC; Material: 1.4571/1.4581; Disc de etanșare fix 1.4571 acoperit; Disc de etanșare mobil Material de carbon; Valoarea Kvs 48 (100%); Curbă caracteristică procent egal; Acționator cu diafragmă 125cm²; Regulator de poziție I/P montat complet; TZID-C; II2G Ex ib IIC T6/4 Gb; HART; cu indicator optic de poziție; otel inoxidabil-Placă de tip; Conexiune la pământ
Țara de origine: Germania
Greutate: 14.0 kg
Număr articol scurt: SG1080WWC125302
Stellventil Type SG10; DN80; PN10/40; NC; Werkstoff: 1.4571/1.4581; Dichtscheibe feststehend 1.4571 beschichtet; Dichtscheibe beweglich Kohlewerkstoff; Kvs-Wert 48 (100%); Kennlinie gleichprozentig; Membranantrieb 125cm²; Aufgebauter I/P-Stellungsregler; TZID-C; II2G Ex ib IIC T6/4 Gb; HART; mit optische Stellungsanzeige; Edelstahl-Typenschild; Erdungsanschluss
