Elemente de conectare și cuplaje
| Filet exterior | filet mama | Type | Sequence |
|---|---|---|---|
| R 1" | G 3/4" | TH60C-34-10-S | 9660001 |
| R 2 1/2" | G 2" | TH60C-20-212-S | 9660002 |
| R 2" | G 1 1/4" | TH60C-114-20-S | 9660003 |
Priză de cuplare DN 7,8
Filet exterior; oţel placat cu zinc; sigiliu NBR; pres. -0,87...35bar; Temperatura max. 100°C
Grundversion
| filet | Type | Sequence |
|---|---|---|
| 1/4" | C0C78-C14-U-T | 9670000 |
| 3/8" | C0C78-C38-U-T | 9670001 |
| 1/2" | C0C78-C12-U-T | 9670002 |
Priză de cuplare DN 7,8
filet mama; oţel placat cu zinc; sigiliu NBR; pres. -0,87...35bar; Temperatura max. 100°C
Grundversion
| filet | Type | Sequence |
|---|---|---|
| 1/4" | C0C78-F14-U | 9680000 |
| 3/8" | C0C78-F38-U | 9680001 |
| 1/2" | C0C78-F12-U | 9680002 |
Priză de cuplare DN 7,8
lungime; oţel placat cu zinc; sigiliu NBR; pres. -0,87...35bar; Temperatura max. 100°C
Grundversion
| lungime | Type | Sequence |
|---|---|---|
| 6 mm | C0C78-H06-U | 9690000 |
| 8 mm | C0C78-H08-U | 9690001 |
| 9 mm | C0C78-H09-U | 9690002 |
| 13 mm | C0C78-H13-U | 9690003 |
Grundversion
| filet | Type | Sequence |
|---|---|---|
| 1/4" | TH38C-14-12-S-YA | 9700000 |
| 1/2" | TH38C-12-10-S | 9700001 |
| 1/4" | TH38C-14-12-S | 9700002 |
Grundversion
| filet | Type | Sequence |
|---|---|---|
| 1/4" | TH85C-14-S | 9710000 |
| 1/8" | TH85C-18-S | 9710001 |
| 3/8" | TH85C-38-S | 9710002 |

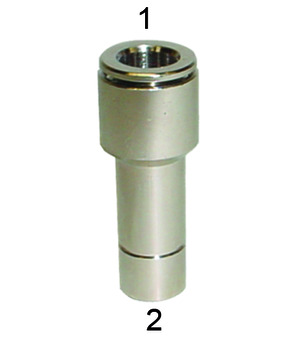

| Diametru | Diametru 2 | Type |
|---|---|---|
| 4 mm | 6 mm | PIF12-04-06-N |
