Elemente de conectare și cuplaje

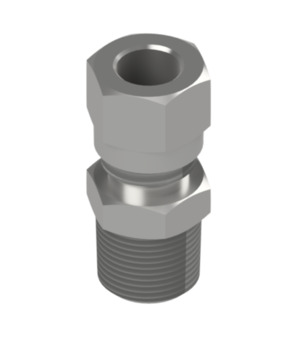

Racord cu șurub drept serie DI12C
Alama placata cu nichel; filet conic
Grundversion
| Diametru | Filet exterior | filet mama | Type | Sequence |
|---|---|---|---|---|
| 8 mm merged | R 1/8" | - | DI12C-08-18-N | 8340012 |
| 8 mm merged | R 3/8" | - | DI12C-08-38-N | 8340013 |
| Diametru | Filet exterior | filet mama | Type |
|---|---|---|---|
| 10 mm merged | R 1/4" | - | DI12C-10-14-N |
| Diametru | marime | Type |
|---|---|---|
| 38 mm merged | Serie grea | A-W38S71 |
| Diametru | Filet exterior | filet mama | Type |
|---|---|---|---|
| 10 mm merged | R 3/8" | - | DI12C-10-38-N |
| Diametru | marime | Type |
|---|---|---|
| 42 mm | Serie ușoară | A-W42L71 |
Racord cu șurub drept serie DI12C
Alama placata cu nichel; filet conic
Grundversion
| Diametru | Filet exterior | filet mama | Type | Sequence |
|---|---|---|---|---|
| 12 mm | R 1/2" | - | DI12C-12-12-N | 8340021 |
| 12 mm | R 3/8" | - | DI12C-12-38-N | 8340023 |
| 15 mm | R 1/2" | - | DI12C-15-12-N | 8340025 |
| 18 mm | R 1/2" | - | DI12C-18-12-N | 8340027 |
Varianten
| Diametru | Filet exterior | filet mama | Type | Sequence |
|---|---|---|---|---|
| 12 mm | R 1/2" | G 1/2" | DI12C-12-12-N-TH59-12N-12-N | 8340022 |
| Diametru | marime | Type |
|---|---|---|
| 6 mm | Serie grea | A-T06S71 |

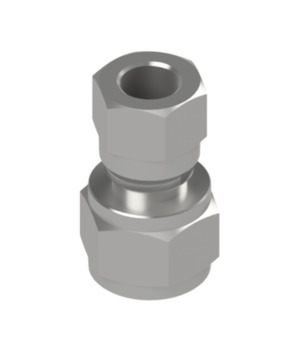

| Diametru | filet mama | Type |
|---|---|---|
| 4 mm | G 1/8" | DI13-04-18-N |
