Supapă fluture cu actuator rotativ pneumatic serie BUW6-DSE-D2 Store
  1. Produse
  2. armături
  3. Valve, valve fluture și valve cu poartă - automate
  4. Supape fluture - pneumatice
  5. Supapă fluture cu actuator rotativ pneumatic serie BUW6-DSE-D2
  6. BUW6-300-DSE-D22-ABS54-C001-03-C002-31-6
BUW6-300-DSE-D22-ABS54-C001-03-C002-31-6

BUW6-300-DSE-D22-ABS54-C001-03-C002-31-6

BUW6-300-DSE-D22

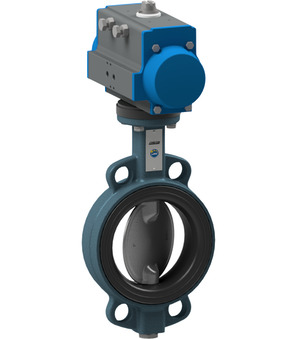

Supapă fluture cu actuator rotativ pneumatic serie BUW6-DSE-D2; Design cu flanșă intermediară; lungime în conformitate cu EN558−1R20; Locuințe GGG40 acoperit cu epoxid; disc 1.4408; Arbore 1.4016; Manșetă EPDM; Presiunea nominală a flanșei PN10/16/ANSI150; Acționator cu dublu efect; control presiune 5,5...8bar; temperatura mediului -10...+130°C; presiune de lucru 0...10bar; DN 300mm; Lungimea de instalare 78mm; propulsie PAD160
ABS54
Supapă de control montată serie ABS; controlul vitezei; adecvat pentru robinet fluture cu actionare pneumatica; Bobină standard C001; latime conector 22mm; Electrovalvă NAMUR cu 5/2 căi (NM52W1S-PR); propulsie PAD/PAS052-270
C001-03
Bobină solenoid tip C001; latime conector 22mm; Tensiune 24VDC / 48V/50-60Hz
C002-31-6
conector; latime conector 22mm; Standard; Tensiune 0-250VAC/DC

Intrastat No.: 84818085
Country of origin: Italia
Weight: 54.81 kg
Short Itemnumber: BUW6300DSED22ABS54C00103C002316
