  5. Supapă fluture cu actuator rotativ pneumatic serie BUW6-DSE
  6. BUW6-040-DSE-D22-01-ABS54-C001-03-C002-31-6

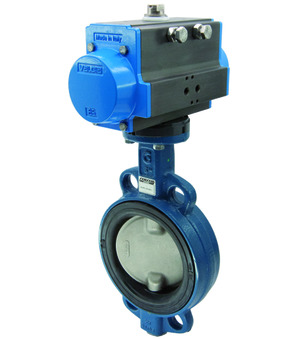

BUW6-040-DSE-D22-01-ABS54-C001-03-C002-31-6

BUW6-040-DSE-D22-01-ABS54-C001-03-C002-31-6

BUW6-040-DSE-D22-01
butterfly valve with pneumatic actuator series BUW6-DSE-D2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; Special grease; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 40mm; length 33mm; actuator PAD063
ABS54
Aufgebautes Steuerventil Serie ABS; Geschwindigkeitsregulierung; passend für pneumatische Absperrklappen; Standardspule C001; Steckerbreite 22mm; 5/2-Wege-NAMUR-Magnetventil (NM52W1S-PR); Antrieb PAD/PAS052-270
C001-03
Magnetspule Typ C001; Steckerbreite 22mm; Spannung 24VDC / 48V/50-60Hz
C002-31-6
Gerätesteckdose; Steckerbreite 22mm; Standard; Spannung 0-250VAC/DC

Intrastat No.: 84818085
Country of origin: Italia
Weight: 2.26 kg
Short Itemnumber: BUW6040DSED2201ABS54C00103C002316
https://www.stasto.ro/web/image/product.template/220241/image_1920?unique=50207e5

BUW6-040-DSE-D22-01
butterfly valve with pneumatic actuator series BUW6-DSE-D2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; Special grease; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 40mm; length 33mm; actuator PAD063
ABS54
Aufgebautes Steuerventil Serie ABS; Geschwindigkeitsregulierung; passend für pneumatische Absperrklappen; Standardspule C001; Steckerbreite 22mm; 5/2-Wege-NAMUR-Magnetventil (NM52W1S-PR); Antrieb PAD/PAS052-270
C001-03
Magnetspule Typ C001; Steckerbreite 22mm; Spannung 24VDC / 48V/50-60Hz
C002-31-6
Gerätesteckdose; Steckerbreite 22mm; Standard; Spannung 0-250VAC/DC

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Diametru
  • Filet exterior
  • Interfața de atașare VDI/VDE 3845
  • Interfața de atașare 2 VDI/VDE 3845
  • Interfața supapei Namur
  • DN
  • lungime
  • latime conector
  • tip
  • conducere
  • Tensiune
  • caracteristica
  • presiune de lucru
  • material contact
  • Material carcasă
  • bobina
  • propulsie
  • propulsie 2
  • temperatura mediului

Această combinație nu există.

Availability:
Contactați-ne

Distribuie

<<Abmessung>>
Interfața supapei Namur 1/4"
DN 40 mm
lungime 33 mm
Types of construction
latime conector 22
<<Ausführung>>
conducere Standard
Electrical figures
Tensiune 24VDC / 48V/50-60Hz
<<Druck>>
presiune de lucru 0...10 bar
<<Eigenschaften>>
bobina C001
propulsie PAD063
propulsie 2 PAS
