Supapă fluture cu actuator rotativ pneumatic serie BULG-D, BULC-D Store
  1. Produse
  2. armături
  3. Valve, valve fluture și valve cu poartă - automate
  4. Supape fluture - pneumatice
  5. Supapă fluture cu actuator rotativ pneumatic serie BULG-D, BULC-D
  6. BULC-300-DPE-D22-ABS54-C001-22-C002-31-LVCV20-1

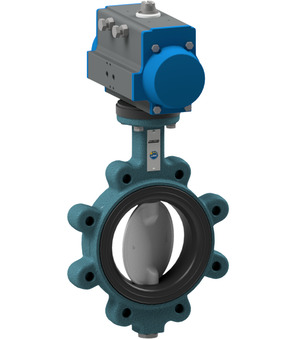

BULC-300-DPE-D22-ABS54-C001-22-C002-31-LVCV20-1

BULC-300-DPE-D22-ABS54-C001-22-C002-31-LVCV20-1

BULC-300-DPE-D22
Supapă fluture cu actuator rotativ pneumatic serie BULG-D, BULC-D; Versiune cu flanșă; lungime în conformitate cu EN558−1R20; Locuințe GGG40 acoperit cu epoxid; Arbore 1.4016; Manșetă EPDM; Acționator cu dublu efect; control presiune 5,5...8bar; temperatura mediului -10...+130°C; presiune de lucru 0...10bar; DN 300mm; Lungimea de instalare 78mm; sub-baza PN10; disc GGG40 verzinkt; propulsie PAD160
ABS54
Supapă de control montată serie ABS; controlul vitezei; adecvat pentru robinet fluture cu actionare pneumatica; Bobină standard C001; latime conector 22mm; Electrovalvă NAMUR cu 5/2 căi (NM52W1S-PR); propulsie PAD/PAS052-270
C001-22
Bobină solenoid tip C001; latime conector 22mm; Tensiune 230V/50-60Hz
C002-31-LVCV20-1
conector; latime conector 22mm; cu LED galben încorporat, VDR și cablu PVC (2 m); Tensiune 230VAC/DC

Intrastat No.: 84818085
Country of origin: Italia
Weight: 71.93 kg
Short Itemnumber: BULC300DPED22ABS54C00122C00231LVCV201
https://www.stasto.ro/web/image/product.template/204338/image_1920?unique=d9024cc

BULC-300-DPE-D22
Absperrklappe mit Druckluftdrehantrieb Serie BULG-D, BULC-D; Abflanschausführung; Baulänge gemäß EN558−1R20; Gehäuse GGG40 epoxybeschichtet; Welle 1.4016; Manschette EPDM; doppeltwirkender Antrieb; Steuerdruck 5,5...8bar; Mediumstemperatur -10...+130°C; Druckbereich 0...10bar; DN 300mm; Einbaulänge 78mm; Flansch PN10; Scheibe GGG40 verzinkt; Antrieb PAD160
ABS54
Aufgebautes Steuerventil Serie ABS; Geschwindigkeitsregulierung; passend für pneumatische Absperrklappen; Standardspule C001; Steckerbreite 22mm; 5/2-Wege-NAMUR-Magnetventil (NM52W1S-PR); Antrieb PAD/PAS052-270
C001-22
Magnetspule Typ C001; Steckerbreite 22mm; Spannung 230V/50-60Hz
C002-31-LVCV20-1
Gerätesteckdose; Steckerbreite 22mm; mit eingebauter LED-gelb, VDR und PVC-Kabel (2 m); Spannung 230VAC/DC

12.146,70 lei 12146.7 RON 12.146,70 lei

Not Available For Sale

  • Interfața supapei Namur
  • DN
  • lungime
  • sub-baza
  • latime conector
  • conducere
  • Tensiune
  • presiune de lucru
  • disc
  • bobina
  • propulsie
  • propulsie 2

Această combinație nu există.

Availability:
Contactați-ne

Distribuie

<<Abmessung>>
Interfața supapei Namur 1/4"
DN 300 mm
lungime 78 mm
sub-baza PN10
Types of construction
latime conector 22
<<Ausführung>>
conducere cu LED galben încorporat, VDR și cablu PVC (2 m)
Electrical figures
Tensiune 230V/50-60Hz
<<Druck>>
presiune de lucru 0...10 bar
<<Materialien>>
disc GGG40 placat cu zinc
<<Eigenschaften>>
bobina C001
propulsie PAD160
propulsie 2 PAS
