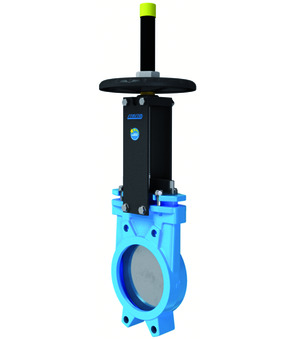

Supapă cu cuțit cu volan A1V2HS2-5-150-B-02
knife gate valve with handwheel series A1V2HS2-5-B; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0...10bar
Introduceți numărul: 84818061
Țara de origine: Spania
Greutate: 0.0 kg
Număr articol scurt: A1V2HS25150B02
Țara de origine: Spania
Greutate: 0.0 kg
Număr articol scurt: A1V2HS25150B02
knife gate valve with handwheel series A1V2HS2-5-B; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0...10bar
| <<Abmessung>> | |
|---|---|
| DN | 150 mm |
| lungime | 60 mm |
| <<Druck>> | |
| presiune de lucru | 0...10 bar |
Nu sunt disponibile piese de schimb pentru acest produs.
