Supapă electromagnetică cu 2/2 căi serie 21PW Store
  1. Produse
  2. armături
  3. Electrovalve pentru lichide și gaze
  4. Electrovalve cu 2/2 căi - acționate pilot
  5. Supapă electromagnetică cu 2/2 căi serie 21PW
  6. 21PW4K0T120-BDA08223DS-C003-32-6

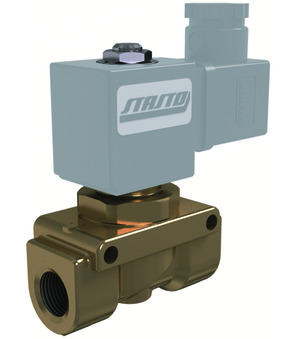

21PW4K0T120-BDA08223DS-C003-32-6

21PW4K0T120-BDA08223DS-C003-32-6

21PW4K0T120
Supapă electromagnetică cu 2/2 căi serie 21PW; operat de pilot; supapa de siguranta pentru compresoare; corp alamă; Tub de ghidare din oțel inoxidabil cu hexagon din alamă sudat; sigiliu PTFE/FKM; temperatura mediului -10...+120°C; latime conector 32mm; G 1/2"; DN 12mm; pres. AC 0,5-18bar; functie NC; lungime 67mm; Bobină standard BDA
BDA08223DS
Bobină solenoid tip BDA; Standard; latime conector 32mm; Tensiune 220-230V/50-60Hz
C003-32-6
conector; latime conector 32mm; Standard; Tensiune 0...250VAC/DC

Intrastat No.: 84812090
Country of origin: Italia
Weight: 0.6 kg
Short Itemnumber: 21PW4K0T120BDA08223DSC003326
https://www.stasto.ro/web/image/product.template/192855/image_1920?unique=d588001

21PW4K0T120
2/2-Wege-Magnetventil Serie 21PW; vorgesteuert; Kompressorentlastungsventil; Körper Messing; Führungsrohr Edelstahl mit eingelötetem Messingsechskant; Dichtung PTFE/FKM; Mediumstemperatur -10...+120°C; Steckerbreite 32mm; G 1/2"; DN 12mm; Druck AC 0,5-18bar; Funktion NC; Baulänge 67mm; Standardspule BDA
BDA08223DS
Magnetspule Typ BDA; Standard; Steckerbreite 32mm; Spannung 220-230V/50-60Hz
C003-32-6
conector; latime conector 32mm; Standard; Tensiune 0...250VAC/DC

727,80 lei 727.8 RON 727,80 lei

Not Available For Sale

  • filet mama
  • DN
  • lungime
  • functie
  • latime conector
  • conducere
  • Tensiune
  • Tipul de tensiune
  • pres. AC
  • pres. DC
  • bobina
  • Autorizare

Această combinație nu există.

Availability:
Contactați-ne

Distribuie

<<Abmessung>>
filet mama G 1/2"
DN 12 mm
lungime 67 mm
<<Funktion>>
functie NC
Types of construction
latime conector 32 mm
<<Ausführung>>
conducere Standard
Electrical figures
Tensiune 220-230V/50-60Hz
Tipul de tensiune AC
<<Druck>>
pres. AC 0,5...18 bar
<<Eigenschaften>>
bobina BDA
Autorizare CE
