Supapă electromagnetică cu 2/2 căi serie 21H..K0Y Store
  1. Produse
  2. armături
  3. Electrovalve pentru lichide și gaze
  4. Electrovalve cu 2/2 căi - acționate pozitiv
  5. Supapă electromagnetică cu 2/2 căi serie 21H..K0Y
  6. 21HF7K0B350-GDV-GDH14012CS-C003-32-LV-2

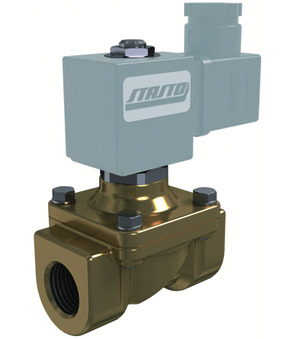

21HF7K0B350-GDV-GDH14012CS-C003-32-LV-2

21HF7K0B350-GDV-GDH14012CS-C003-32-LV-2

21HF7K0B350-GDV
Supapă electromagnetică cu 2/2 căi serie 21H..K0Y; acţionare combinată; NC; corp alamă; Tub de ghidare din oțel inoxidabil; sigiliu NBR; temperatura mediului -10...+90°C; latime conector 32mm; G 11/4"; DN 35mm; pres. AC 0-16bar; pres. DC 0-6bar; lungime 128mm; Bobină standard GDV
GDH14012CS
Bobină solenoid tip GDV/GDH; pentru presiuni/temperaturi mai mari; latime conector 32mm; Tensiune 12VDC; Autorizare CE
C003-32-LV-2
conector; latime conector 32mm; cu LED galben încorporat și VDR; Tensiune 24VAC/DC

Intrastat No.: 84812090
Country of origin: Italia
Weight: 2.89 kg
Short Itemnumber: 21HF7K0B350GDVGDH14012CSC00332LV2
https://www.stasto.ro/web/image/product.template/193749/image_1920?unique=e04ce20

21HF7K0B350-GDV
2/2-Wege-Magnetventil Serie 21H..K0Y; zwangsgesteuert; NC; Körper Messing; Führungsrohr Edelstahl; Dichtung NBR; Mediumstemperatur -10...+90; Steckerbreite 32mm; G 11/4"; DN 35mm; Druck AC 0-16bar; Druck DC 0-6bar; Baulänge 128mm; Standardspule GDV
GDH14012CS
Magnetspule Typ GDV/GDH; für höhere Drücke/Temperaturen; Steckerbreite 32mm; Spannung 12VDC; Zulassung CE
C003-32-LV-2
Gerätesteckdose; Steckerbreite 32mm; mit eingebauter LED-gelb und VDR; Spannung 24VAC/DC

1.923,20 lei 1923.2 RON 1.923,20 lei

Not Available For Sale

  • filet mama
  • DN
  • lungime
  • latime conector
  • conducere
  • Tensiune
  • Tipul de tensiune
  • pres. AC
  • pres. DC
  • sigiliu
  • bobina
  • temperatura mediului
  • Autorizare

Această combinație nu există.

Availability:
Contactați-ne

Distribuie

<<Abmessung>>
filet mama G 1 1/4"
DN 35 mm
lungime 128 mm
Types of construction
latime conector 32 mm
<<Ausführung>>
conducere cu LED galben încorporat și VDR
Electrical figures
Tensiune 12VDC
<<Druck>>
pres. AC 0...16 bar
pres. DC 0...6 bar
<<Materialien>>
sigiliu NBR
<<Eigenschaften>>
bobina GDV
temperatura mediului -10...+90 °C
Autorizare CE

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
3
Fișă de date_Bobină solenoid tip GDV/GDH_RO.pdf
GDH14012CS
Download
Fișă de date_Supapă electromagnetică cu 2/2 căi serie 21H..K0Y_RO.pdf
Download
Fișă de date_conector_RO.pdf
C003-32-LV-2
Download
CAD / 3D
2
CADSTEP_C00332LV1.stp
C003-32-LV-2
Download
CADSTEP_GDH14012CS.stp
GDH14012CS
Download

ZIP
Datové listy
4
Datový list_2/2 cestný elektromagnetický ventil 21HF7K0B350-GDV_CS.pdf
21HF7K0B350-GDV
Download
Datový list_2/2 cestný elektromagnetický ventil série 21H..K0Y_CS.pdf
Download
Datový list_konektor_CS.pdf
C003-32-LV-2
Download
Datový list_magnetická cívka typ GDV/GDH_CS.pdf
GDH14012CS
Download
Montážní a provozní návody
1
Návod k montáži a obsluze_2/2-cestné elektromagnetické ventily - nuceně řízené_CS.pdf
Download
Prohlášení o shodě
2
Prohlášení o shodě_2/2-cestné elektromagnetické ventily - nuceně řízené_CS.pdf
Download
Prohlášení o shodě_magnetická cívka typ GDV/GDH_CS.pdf
GDH14012CS
Download

ZIP
Data Sheets
3
Datablad_2/2-vejs magnetventil Serie 21H..K0Y_DA_DK.pdf
Download
Datablad_Apparatstikdåse_DA_DK.pdf
C003-32-LV-2
Download
Datablad_Magnetspole Type GDV/GDH_DA_DK.pdf
GDH14012CS
Download

ZIP
Datenblätter
4
Datenblatt_2/2-Wege-Magnetventil 21HF7K0B350-GDV_DE.pdf
21HF7K0B350-GDV
Download
Datenblatt_2/2-Wege-Magnetventil Serie 21H..K0Y_DE.pdf
Download
Datenblatt_Gerätesteckdose_DE.pdf
C003-32-LV-2
Download
Datenblatt_Magnetspule Typ GDV/GDH_DE.pdf
GDH14012CS
Download
Montage- und Betriebsanleitungen
1
Montage- und Betriebsanleitung_2/2-Wege Magnetventile - zwangsgesteuert_DE.pdf
Download
Konformitätserklärungen
2
Konformitätserklärung_2/2-Wege Magnetventile - zwangsgesteuert_DE.pdf
Download
Konformitätserklärung_Magnetspule Typ GDV/GDH_DE.pdf
GDH14012CS
Download

ZIP
Data Sheets
3
Δελτίο δεδομένων_Ηλεκτρομαγνητική βαλβίδα 2/2 οδών Σειρά 21H..K0Y_EL_GR.pdf
Download
Δελτίο δεδομένων_Πηνίο ηλεκτρομαγνήτη Τύπος GDV/GDH_EL_GR.pdf
GDH14012CS
Download
Δελτίο δεδομένων_Συσκευαστική πρίζα συσκευής_EL_GR.pdf
C003-32-LV-2
Download

ZIP
Data Sheets
4
Data sheet_2/2-way solenoid valve 21HF7K0B350-GDV_EN.pdf
21HF7K0B350-GDV
Download
Data sheet_2/2-way solenoid valve Series 21H..K0Y_EN.pdf
Download
Data sheet_Coil Type GDV/GDH_EN.pdf
GDH14012CS
Download
Data sheet_Connector_EN.pdf
C003-32-LV-2
Download
Assembly and Operating Instructions
1
Assembly and operating instructions_2/2-way solenoid valves - combined operated_EN.pdf
Download
Declarations of Conformity
2
Declaration of conformity_2/2-way solenoid valves - combined operated_EN.pdf
Download
Declaration of conformity_Coil Type GDV/GDH_EN.pdf
GDH14012CS
Download

ZIP
Data Sheets
3
Ficha técnica_Bobina magnética Tipo GDV/GDH_ES.pdf
GDH14012CS
Download
Ficha técnica_Toma de equipo_ES.pdf
C003-32-LV-2
Download
Ficha técnica_Válvula solenoide de 2/2 vías Serie 21H..K0Y_ES.pdf
Download

ZIP
Data Sheets
3
Tietolehti_2/2-tie magneettiventtiili Sarja 21H..K0Y_FI.pdf
Download
Tietolehti_Laiteliitinpistorasia_FI.pdf
C003-32-LV-2
Download
Tietolehti_Magneettikela Tyyppi GDV/GDH_FI.pdf
GDH14012CS
Download

ZIP
Data Sheets
3
Fiche technique_Bobine électromagnétique Type GDV/GDH_FR.pdf
GDH14012CS
Download
Fiche technique_Prise d’appareil_FR.pdf
C003-32-LV-2
Download
Fiche technique_Électrovanne 2/2 voies Série 21H..K0Y_FR.pdf
Download

ZIP
Data Sheets
3
Podatkovni list_2/2-putni elektromagnetski ventil Serija 21H..K0Y_HR.pdf
Download
Podatkovni list_Magnetska zavojnica Tip GDV/GDH_HR.pdf
GDH14012CS
Download
Podatkovni list_Utičnica za uređaj_HR.pdf
C003-32-LV-2
Download

ZIP
Adatlapok
4
Adatlap_2/2-es mágnesszelep 21HF7K0B350-GDV_HU.pdf
21HF7K0B350-GDV
Download
Adatlap_2/2-es mágnesszelep sorozat 21H..K0Y_HU.pdf
Download
Adatlap_mágnestekercs típus GDV/GDH_HU.pdf
GDH14012CS
Download
Adatlap_stekker_HU.pdf
C003-32-LV-2
Download
Szerelési és kezelési útmutatók
1
Összeszerelési és kezelési útmutató_2/2-es elektromos vezérlésű útszelepek - kombinált vezérléssel_HU.pdf
Download
Megfelelőségi nyilatkozatok
2
Megfelelőségi nyilatkozat_2/2-es elektromos vezérlésű útszelepek - kombinált vezérléssel_HU.pdf
Download
Megfelelőségi nyilatkozat_mágnestekercs típus GDV/GDH_HU.pdf
GDH14012CS
Download

ZIP
Data Sheets
3
Scheda tecnica_Bobina magnetica Tipo GDV/GDH_IT.pdf
GDH14012CS
Download
Scheda tecnica_Elettrovalvola 2/2 vie Serie 21H..K0Y_IT.pdf
Download
Scheda tecnica_Presa per apparecchi_IT.pdf
C003-32-LV-2
Download

ZIP
Data Sheets
3
Datablad_2/2-veis magnetventil Serie 21H..K0Y_NB_NO.pdf
Download
Datablad_Apparatkontakt_NB_NO.pdf
C003-32-LV-2
Download
Datablad_Magnetspole Type GDV/GDH_NB_NO.pdf
GDH14012CS
Download

ZIP
Data Sheets
3
Datasheet_2/2-weg magneetventiel Serie 21H..K0Y_NL.pdf
Download
Datasheet_Apparaatcontactdoos_NL.pdf
C003-32-LV-2
Download
Datasheet_Magneetspoel Type GDV/GDH_NL.pdf
GDH14012CS
Download

ZIP
Karty katalogowe
4
Arkusz danych_2/2-drogowy zawór elektromagnetyczny 21HF7K0B350-GDV_PL.pdf
21HF7K0B350-GDV
Download
Arkusz danych_2/2-drogowy zawór elektromagnetyczny Seria 21H..K0Y_PL.pdf
Download
Arkusz danych_cewka elektromagnetyczna typ GDV/GDH_PL.pdf
GDH14012CS
Download
Arkusz danych_wtyczka_PL.pdf
C003-32-LV-2
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu i obsługi_2/2-drogowe zawory elektromagnetyczne - sterowanie wymuszone_PL.pdf
Download
Deklaracje zgodności
2
Deklaracja zgodności_2/2-drogowe zawory elektromagnetyczne - sterowanie wymuszone_PL.pdf
Download
Deklaracja zgodności_cewka elektromagnetyczna typ GDV/GDH_PL.pdf
GDH14012CS
Download

ZIP
Podatkovni listi
4
Podatkovni list_2/2-potni magnetni ventil 21HF7K0B350-GDV_SL.pdf
21HF7K0B350-GDV
Download
Podatkovni list_2/2-potni magnetni ventil serija 21H..K0Y_SL.pdf
Download
Podatkovni list_Magnetna tuljava Tip GDV/GDH_SL.pdf
GDH14012CS
Download
Podatkovni list_vtičnica_SL.pdf
C003-32-LV-2
Download
Navodila za montažo in uporabo
1
Navodila za montažo in uporabo_2/2-potni magnetni ventili - prisilno krmiljeni_SL.pdf
Download
Izjave o skladnosti
2
Izjava o skladnosti_2/2-potni magnetni ventili - prisilno krmiljeni_SL.pdf
Download
Izjava o skladnosti_Magnetna tuljava Tip GDV/GDH_SL.pdf
GDH14012CS
Download

ZIP
Data Sheets
4
Tehnički list_2/2-kraki elektromagnetni ventil 21HF7K0B350-GDV_SRLATIN.pdf
21HF7K0B350-GDV
Download
Tehnički list_2/2-kraki elektromagnetni ventil serije 21H..K0Y_SRLATIN.pdf
Download
Tehnički list_konektor_SRLATIN.pdf
C003-32-LV-2
Download
Tehnički list_namotaj tip GDV/GDH_SRLATIN.pdf
GDH14012CS
Download
Assembly and Operating Instructions
1
Uputstvo za montažu i upotrebu_2/2 elektromagnetni ventili - kombinovano upravljani_SRLATIN.pdf
Download
Declarations of Conformity
2
Deklaracija o usklađenosti_2/2 elektromagnetni ventili - kombinovano upravljani_SRLATIN.pdf
Download
Deklaracija o usklađenosti_namotaj tip GDV/GDH_SRLATIN.pdf
GDH14012CS
Download

ZIP
Data Sheets
3
Datablad_2/2-vägs magnetventil Serie 21H..K0Y_SV.pdf
Download
Datablad_Apparatuttag_SV.pdf
C003-32-LV-2
Download
Datablad_Magnetspole Typ GDV/GDH_SV.pdf
GDH14012CS
Download
Supapă electromagnetică cu 2/2 căi 21HF7K0B350-GDV
21HF7K0B350-GDV x 1.0
Supapă electromagnetică cu 2/2 căi 21HF7K0B350-GDV
Supapă electromagnetică cu 2/2 căi serie 21H..K0Y; acţionare combinată; NC; corp alamă; Tub de ghidare din oțel inoxidabil; sigiliu NBR; temperatura mediului -10...+90°C; latime conector 32mm; G 11/4"; DN 35mm; pres. AC 0-16bar; pres. DC 0-6bar; lungime 128mm; Bobină standard GDV
Adaugă în coș
GDH14012CS
GDH14012CS x 1.0
GDH14012CS
Bobină solenoid tip GDV/GDH; pentru presiuni/temperaturi mai mari; latime conector 32mm; Tensiune 12VDC; Autorizare CE
Adaugă în coș
