Supapă electromagnetică cu 2/2 căi serie 21A.Z Store
  1. Produse
  2. armături
  3. Electrovalve pentru lichide și gaze
  4. Electrovalve cu 2/2 căi - acționare directă
  5. Supapă electromagnetică cu 2/2 căi serie 21A.Z
  6. 21A8ZV55-GDV-GDH14012CS-C003-32-6

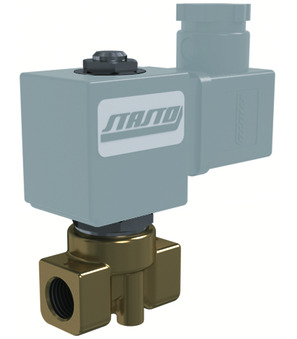

21A8ZV55-GDV-GDH14012CS-C003-32-6

21A8ZV55-GDV-GDH14012CS-C003-32-6

21A8ZV55-GDV
Supapă electromagnetică cu 2/2 căi serie 21A; controlat direct; NO; corp alamă; Tub de ghidare otel inoxidabil intreaga; sigiliu FKM; temperatura mediului -10...+120°C; latime conector 32mm; G 1/2"; DN 5,5mm; pres. AC/DC 0-3,5bar; lungime 58mm; Bobină standard GDV
GDH14012CS
Bobină solenoid tip GDV/GDH; pentru presiuni/temperaturi mai mari; latime conector 32mm; Tensiune 12VDC; Autorizare CE
C003-32-6
conector; latime conector 32mm; Standard; Tensiune 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italia
Weight: 0.63 kg
Short Itemnumber: 21A8ZV55GDVGDH14012CSC003326
https://www.stasto.ro/web/image/product.template/191305/image_1920?unique=d8b08ef

21A8ZV55-GDV
2/2-potni magnetni ventil serija 21A; direktno krmiljenje; NO; telo medenina; Vodilna cev legirano jeklo enodelna; tesnilo FKM; temperatura medija -10...+120°C; širina vtiča 32mm; G 1/2"; DN 5,5mm; tlak AC/DC 0-3,5bar; dolžina 58mm; standardna tuljava GDV
GDH14012CS
Magnetna tuljava Tip GDV/GDH; za višje tlake/temperature; širina vtiča 32mm; napetost 12VDC; certifikat CE
C003-32-6
vtičnica; širina vtiča 32mm; Standard; napetost 0...250VAC/DC

760,90 lei 760.9 RON 760,90 lei

Not Available For Sale

  • filet mama
  • DN
  • lungime
  • latime conector
  • conducere
  • Tensiune
  • Tipul de tensiune
  • pres. AC/DC
  • sigiliu
  • bobina
  • temperatura mediului
  • Autorizare

Această combinație nu există.

Availability:
Contactați-ne

Distribuie

<<Abmessung>>
filet mama G 1/2"
DN 5,5 mm
lungime 58 mm
Types of construction
latime conector 32 mm
<<Ausführung>>
conducere Standard
Electrical figures
Tensiune 12VDC
<<Druck>>
pres. AC/DC 0...3,5 bar
<<Materialien>>
sigiliu FKM
<<Eigenschaften>>
bobina GDV
temperatura mediului -10...+140 °C
Autorizare CE
