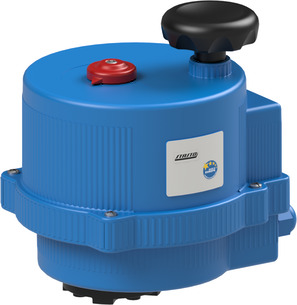

Electrical actuator VB110-L-AKKU-P0S

Electrical actuator VB110-L-AKKU-P0S

Electrical actuator Series VB-AKKU-POS; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Incl. Positioner 4-20mA/0-10V; Including Accumulator for safety position; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Function NC

Intrastat No.: 85013100
Country of origin: Italy
Weight: 5.3 Kg
Short Itemnumber: VB110LAKKUP0S
https://www.stasto.ro/web/image/product.template/149581/image_1920?unique=0ec923a

electrical actuator series VB-AKKU-POS; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; protection class IP67; incl. positioner 4-20mA/0-10V; including accumulator for safety position; torque 110Nm; operating time 27s; flange ISO5211 F07/F10-Stern 17 mm; voltage 24VAC/DC; function NC

5.977,70 lei 5977.7 RON 5.977,70 lei

Not Available For Sale

excl. tax
  • Function
  • Flange ISO5211
  • Voltage
  • Torque
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Torque 110 Nm
Operating time 27 s
Flange ISO5211 F07/F10-star 17mm
Voltage 24VAC/DC
All specifications (5)
Torque 110 Nm
Operating time 27 s
Flange ISO5211 F07/F10-star 17mm
Voltage 24VAC/DC
Function NC
40406280004 x 1.0 Pcs
40406280004
Electric motor; VB060-H; VB060L; VB110-H; VB110-L; VB270-H; VB270-L, VB350-H; VB350-L
