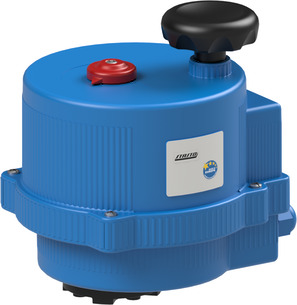

Electrical actuator VB030-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
Intrastat No.: 85013100
Country of origin: Italy
Weight: 2.16 Kg
Short Itemnumber:VB030H
Country of origin: Italy
Weight: 2.16 Kg
Short Itemnumber:VB030H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
| Designs | |
|---|---|
| Flange ISO5211 | F03/F05-star 11mm |
| Electrical key figures | |
| Voltage | 100-240VAC |
| characteristics | |
| Actuator | VB030H |
| Torque | 30 Nm |
| Operating time | 8 s |
| Others | |
| Protection class | IP67 |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Electrical actuator Series VB_EN.pdf
Download
Assembly and Operating Instructions
2Declarations of Conformity
1Declaration of conformity_Electrical actuator Series VB_EN.pdf
Download
CAD / 3D
1CADSTEP_VB030H.stp
Download
No spare parts are available for this product.
