Safety valve 1/2"-10-1/2"-288,7-25
Relief valve RV06-34-16-19,8-V-3D
Relief valve RV06-34-16-19,8-V-3D
1.852,80 lei
1.852,80 lei
Safety valve SV80-12-10-6-0
Safety valve SV80-12-10-6-0
1.212,30 lei
1.212,30 lei

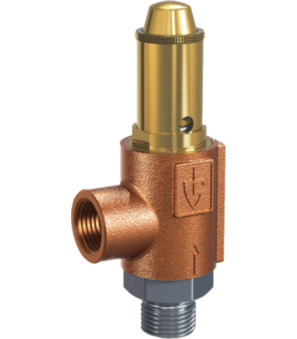

Safety valve 1/2"-10-1/2"-288,7-25

Safety valve Series SV80; With twist lifting; Body Stainless steel/Bronze; Seal PTFE; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -60…225°C; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Inlet male G 1/2"; DN 10mm; Outlet female G 1/2"; Discharge capacity at 6bar(g) air 288,7Nm3/h; Set pressure 25Bar

Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.45 Kg
Short Itemnumber:SV801210253C
https://www.stasto.ro/web/image/product.template/163034/image_1920?unique=c38343c

safety valve series SV80; with twist lifting; body stainless steel/bronze; seal PTFE; application: compressed air, non-toxic gases, vapors; medium temperature -60…225°C; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inlet male G 1/2"; DN 10mm; outlet female G 1/2"; discharge capacity at 6bar(g) air 288,7Nm3/h; set pressure 25bar

1.212,30 lei 1212.3 RON 1.212,30 lei

Not Available For Sale

  • DN
  • Inlet male
  • Outlet female
  • Set pressure
  • Blow-off capacity at 6 bar air

This combination does not exist.

Availability:
Contact Us
dimension
DN 10 mm
Inlet male G 1/2"
Outlet female G 1/2"
characteristics
Set pressure 25 bar
Blow-off capacity at 6 bar air 288,7 Nm3/h
No spare parts are available for this product.
