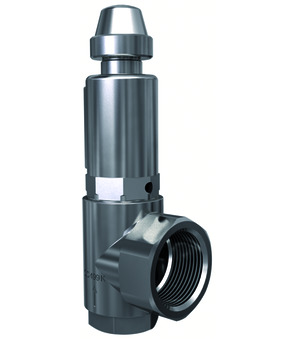

SV59-34W-18-8-4T
Safety valve Series SV59; With lifting lever; With metal bellow; Body Stainless steel 1.4404; Seal EPDM; Application: Liquids; Medium temperature -40…+170°C; DN18mm; Inlet Female thread G3/4"; Outlet Female thread G11/4"; Set pressure 8Bar/116Psi; Incl. TÜV-Inspection certificate EN-10204-3.2; Certificate ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME); Inspection certificate EN-10204-3.1; For material; ATEX-certificate; EAC-Certificate; With valve pass And Laser marking
Country of origin: Germany
Weight: 1.0 Kg
Short Itemnumber: SV5934W1884T
safety valve series SV59; with lifting lever; with metal bellow; body stainless steel AISI 316L; seal EPDM; application: liquids; medium temperature -40…+170°C; DN18mm; inlet female thread G3/4"; outlet female thread G11/4"; set pressure 8bar/116psi; incl. TÜV-inspection certificate EN-10204-3.2; certificate ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME); inspection certificate EN-10204-3.1; for material; ATEX-certificate; EAC-certificate; with valve pass and laser marking
| Design | ATEX |
