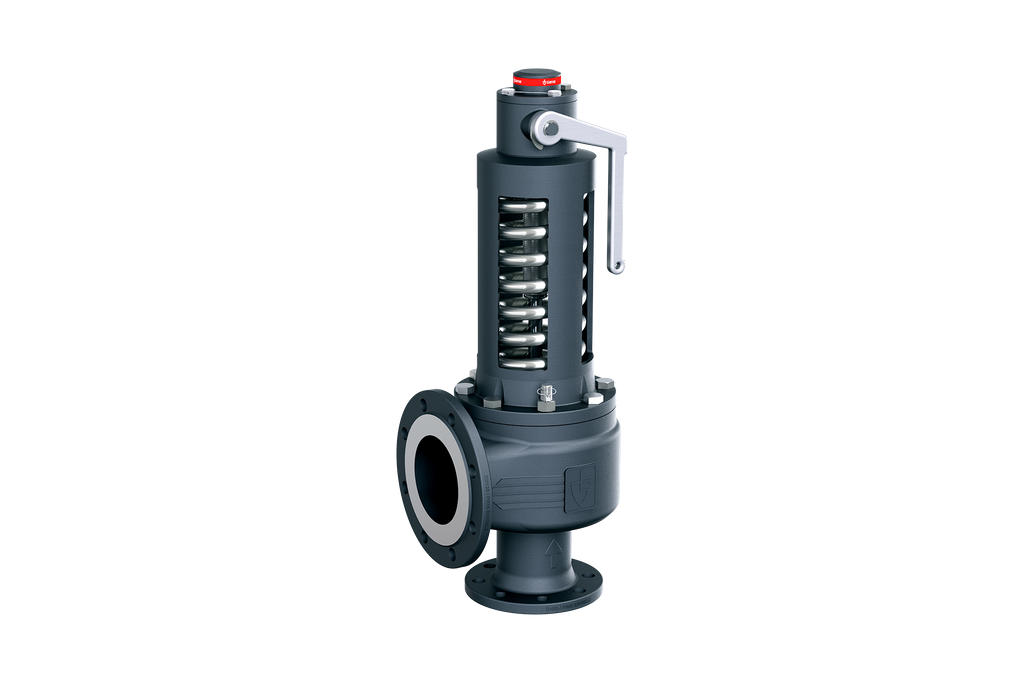

Safety valve Series SV52; Gas-proof cover; With lifting lever; Body Ductile iron; Application: Liquids, Compressed air, gases, vapors; Inlet DN50/PN40; Outlet DN80/PN16; Seal EPDM; Medium temperature -40...+170°C; Set pressure 6bar
Country of origin: Germany
Weight: 26.0 Kg
Short Itemnumber: SV52504W456E
safety valve series SV52; gas-proof cover; with lifting lever; body ductile iron; application: liquids, compressed air, gases, vapors; inlet DN50/PN40; outlet DN80/PN16; seal EPDM; medium temperature -40...+170°C; set pressure 6bar
Technical specifications
| Inlet | DN50/PN40 |
|---|---|
| Outlet | DN80/PN16 |
| Seal | EPDM |
| Medium temperature | -40...+170 °C |
| Inlet | DN50/PN40 |
| Outlet | DN80/PN16 |
| Seal | EPDM |
| Medium temperature | -40...+170 °C |
| Set pressure | 6 bar |
| Seal | EPDM |
SV52-504W-45-6-E
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV52 · DE
Data sheet 18,3 MB Updated 29/07/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV52 · EN
Data sheet 18,4 MB Updated 29/07/2026
