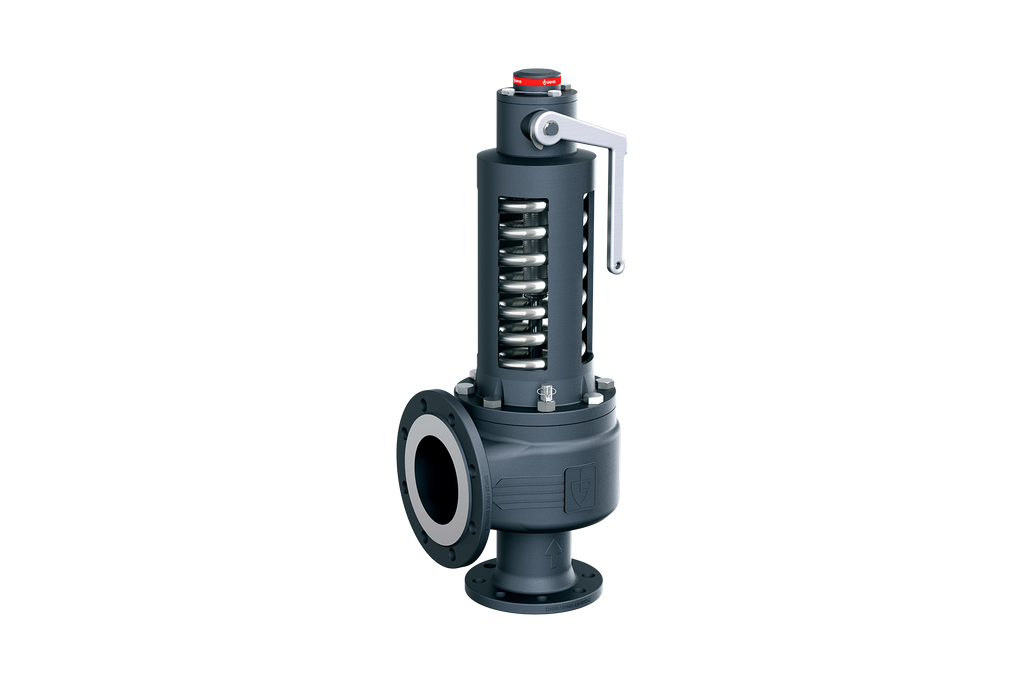

Safety valve; Gas-proof cover; With lifting lever; Body Ductile iron; Application: Liquids, Compressed air, gases, vapors; Inlet DN32/PN40; Outlet DN50/PN16; d0=29,3mm; Seal EPDM; Medium temperature -40...+170°C; Set pressure 11bar
Country of origin: Germany
Weight: 18.3 Kg
Short Itemnumber: SV52324W29.311E
safety valve; gas-proof cover; with lifting lever; body ductile iron; application: liquids, compressed air, gases, vapors; inlet DN32/PN40; outlet DN50/PN16; d0 29,3mm; seal metallic; medium temperature -60...+350°C; set pressure 10bar
Technical specifications
| Inlet | DN32/PN40 |
|---|---|
| Outlet | DN50/PN16 |
| Seal | EPDM |
| Set pressure | 11 bar |
| Inlet | DN32/PN40 |
| Outlet | DN50/PN16 |
| Seal | EPDM |
| Set pressure | 11 bar |
| Medium temperature | -40...+170 °C |
SV52-324W-29,3-11-E
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV52 · DE
Data sheet 18,3 MB Updated 29/07/2026
CAD / 3D
1-
STP
CADSTEP · SV52324W29.311E
CAD-STEP 17,9 MB Updated 04/10/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV52 · EN
Data sheet 18,4 MB Updated 29/07/2026
CAD / 3D
1-
STP
CADSTEP · SV52324W29.311E
CAD-STEP 17,9 MB Updated 04/10/2026
