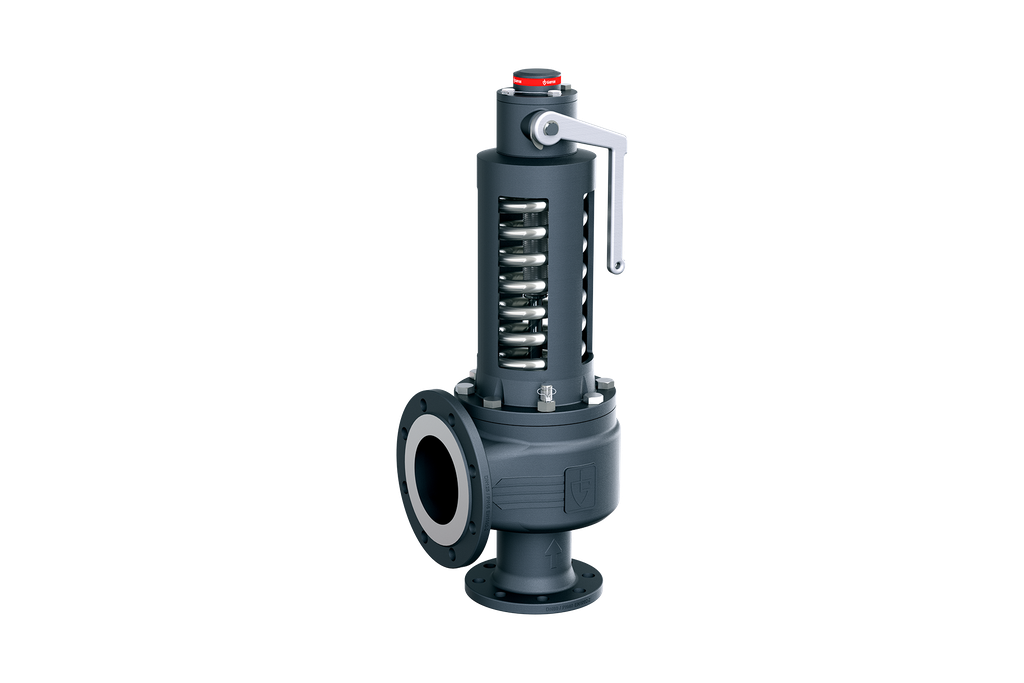

Safety valve Series SV52; Gas-proof cover; With lifting lever; Body Ductile iron; Application: Liquids, Compressed air, gases, vapors; Inlet DN20/PN40; Outlet DN32/PN16; DN 18mm; Seal Metallic; Medium temperature -10...+350°C; Set pressure 10bar
Country of origin: Germany
Weight: 7.0 Kg
Short Itemnumber: SV52204W1810
safety valve; gas-proof cover; with lifting lever; body ductile iron; application: liquids, compressed air, gases, vapors; inlet DN20/PN40; outlet DN32/PN16; d0 18mm; seal metallic; medium temperature -60...+350°C; set pressure 10bar
Technical specifications
| Inlet | DN20/PN40 |
|---|---|
| Outlet | DN32/PN16 |
| Seal | Metallic |
| Set pressure | 10 bar |
| Inlet | DN20/PN40 |
| Outlet | DN32/PN16 |
| Seal | Metallic |
| Set pressure | 10 bar |
| Medium temperature | -60...+350 °C |
SV52-204W-18-10
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV52 · DE
Data sheet 18,3 MB Updated 29/07/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV52 · EN
Data sheet 18,4 MB Updated 29/07/2026
