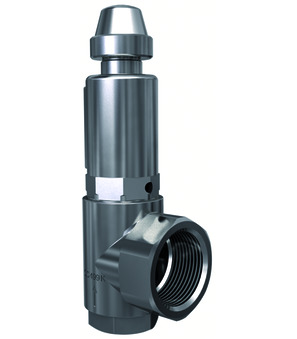

Safety valve Series SV32; With twist lifting; Body Stainless steel AISI 316L; Cap Stainless steel AISI 316; Application: Compressed air, Non-toxic gases, vapors; Inlet G 1/2"; Outlet G 1/2"; DN 15,8mm; Set pressure 6bar; Seal EPDM; Medium temperature -40…170°C
Country of origin: Germany
Weight: 0.4 Kg
Short Itemnumber: SV321215.86E
safety valve series SV32; with twist lifting; body stainless steel AISI 316L; cap stainless steel AISI 316; application: compressed air, non-toxic gases, vapors; inlet G 1/2"; outlet G 1/2"; DN 15,8mm; set pressure 6bar; seal EPDM; medium temperature -40…170°C
Technical specifications
| Inlet G | 1/2" |
|---|---|
| Outlet | G 1/2" |
| DN | 15,8 mm |
| Set pressure | 6 bar |
| Inlet G | 1/2" |
| Outlet | G 1/2" |
| DN | 15,8 mm |
| Set pressure | 6 bar |
| Seal | EPDM |
| Medium temperature | -40...+170 °C |
SV32-12-15,8-6-E
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV32 · DE
Data sheet 8,2 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV32 · EN
Data sheet 8,1 MB Updated 13/06/2026
