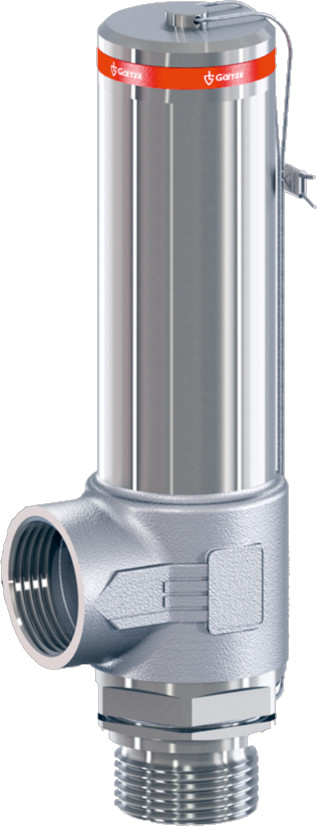

Safety valve Series SV30; For cryogenic applications; Inlet body 1.4404; Outlet body 1.4408; Seal PTFE; Temperature range -200...+200°C; Gas-proof cover; Application: Air; Vapors; Gases And Liquids; Free of oil and grease; Inlet male G1/4"; DN 6mm; Outlet female G3/8"; Set pressure 18Bar
Country of origin: Germany
Weight: 0.18 Kg
Short Itemnumber: SV3014W618
Safety valve Series SV30; For cryogenic applications; Inlet body AISI 316L; Outlet body AISI 316; Seal PTFE; Temperature range -200...+200°C; Gas-proof cover; Application: Air; Vapors; Gases And Liquids; Free of oil and grease; Inlet male G1/4"; DN 6mm; Outlet female G3/8"; Set pressure 18Bar
Technical specifications
| Inlet male | G 1/4" |
|---|---|
| DN | 6 mm |
| Outlet female | G 3/8" |
| Set pressure | 18 bar |
| Inlet male | G 1/4" |
| DN | 6 mm |
| Outlet female | G 3/8" |
| Set pressure | 18 bar |
SV30-14W-6-18
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV30 · DE
Data sheet 10,3 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV30 · EN
Data sheet 10,3 MB Updated 13/06/2026
