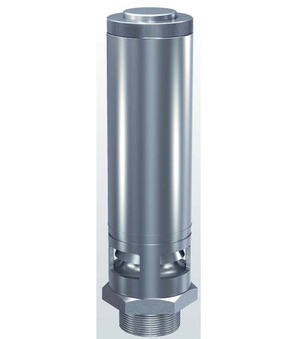

Safety valve 2"-48-6-FKM--20…200
Safety valve SV11-114-31-21-V
Safety valve SV11-114-31-21-V
4.555,80 lei
4.555,80 lei
Safety valve 2"-48-2-NBR--30...130
Safety valve 2"-48-2-NBR--30...130
10.105,10 lei
10.105,10 lei

Safety valve 2"-48-6-FKM--20…200

Safety valve Series SV11; With twist lifting; Body 1.4404; Compression spring 1.4310; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Connection 2"; DN 48mm; Set pressure 6; Seal FKM; Medium temperature -20…200°C

Intrastat No.: 84814010
Country of origin: Germany
Weight: 5.05 Kg
Short Itemnumber:SV1120486V
https://www.stasto.ro/web/image/product.template/151336/image_1920?unique=1a28827

safety valve series SV11; with twist lifting; body AISI 316L; compression spring AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; connection 2"; DN 48mm; set pressure 6; seal FKM; medium temperature -20…200°C

10.105,10 lei 10105.1 RON 10.105,10 lei

Not Available For Sale

  • Male thread
  • DN
  • Seal
  • Set pressure
  • Medium temperature

This combination does not exist.

Availability:
Contact Us
dimension
Male thread G 2"
DN 48 mm
materials
Seal FKM
characteristics
Set pressure 6 bar
Medium temperature -20...+200 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Safety valve Series SV11_EN.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Sicherheitsventil Serie SV11_DE.pdf
Download
No spare parts are available for this product.
